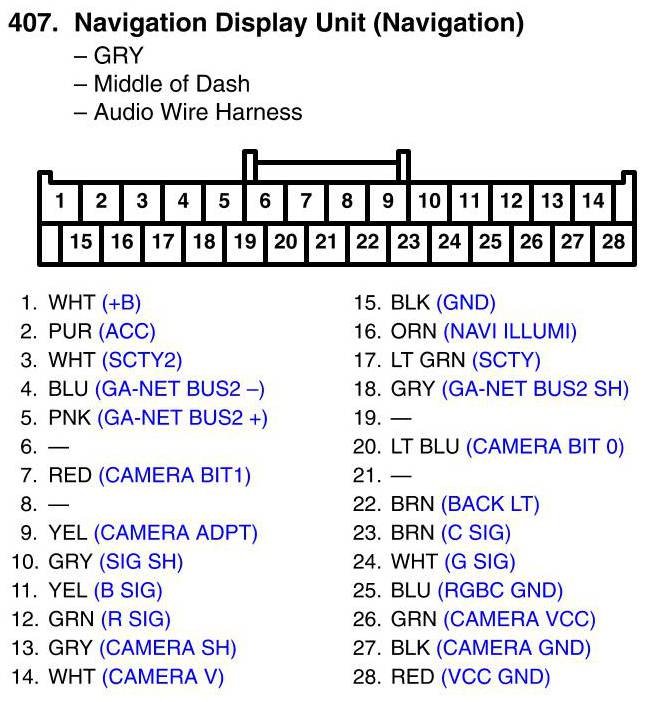

View 407 - Navigation Display Unit Connector View (Navigation)
View 407 - Navigation Display Unit Connector View (Navigation)
