Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 319 - Engine Start/Stop Switch Connector View (Keyless Access)

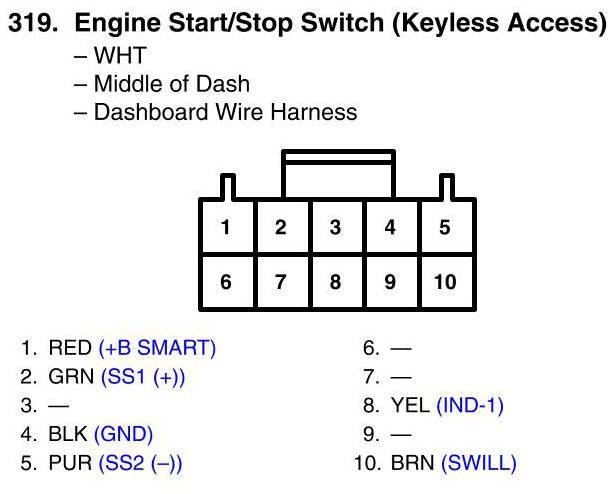

View 319 - Engine Start/Stop Switch Connector View (Keyless Access)
