Left Front Splash Guard Reinforcement Replacement

Left Front Splash Guard Reinforcement Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:

- Front side sill panel, left side
- Rear side sill panel, left side

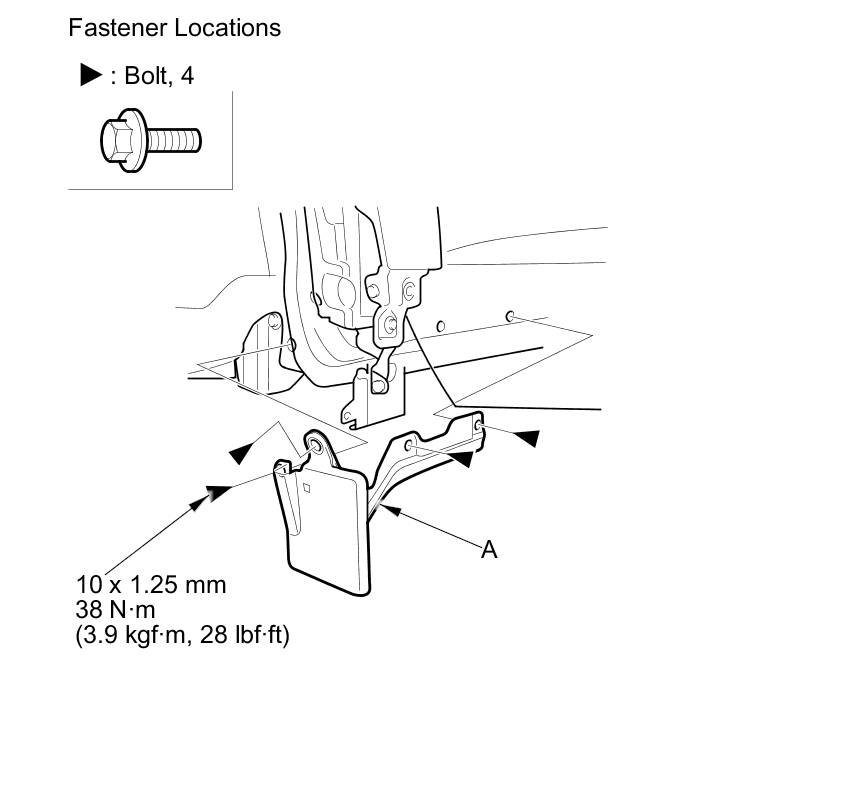

2. Remove the bolts, then remove the left front splash guard reinforcement (A).





3. Install the reinforcement in the reverse order of removal.
