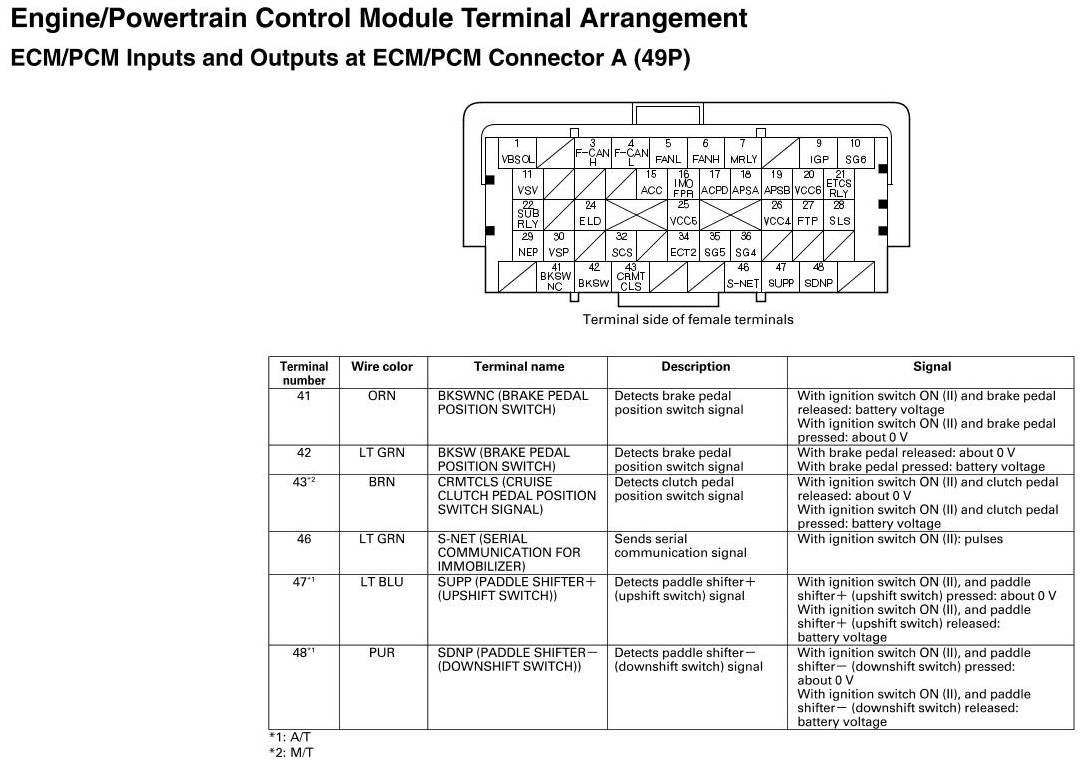

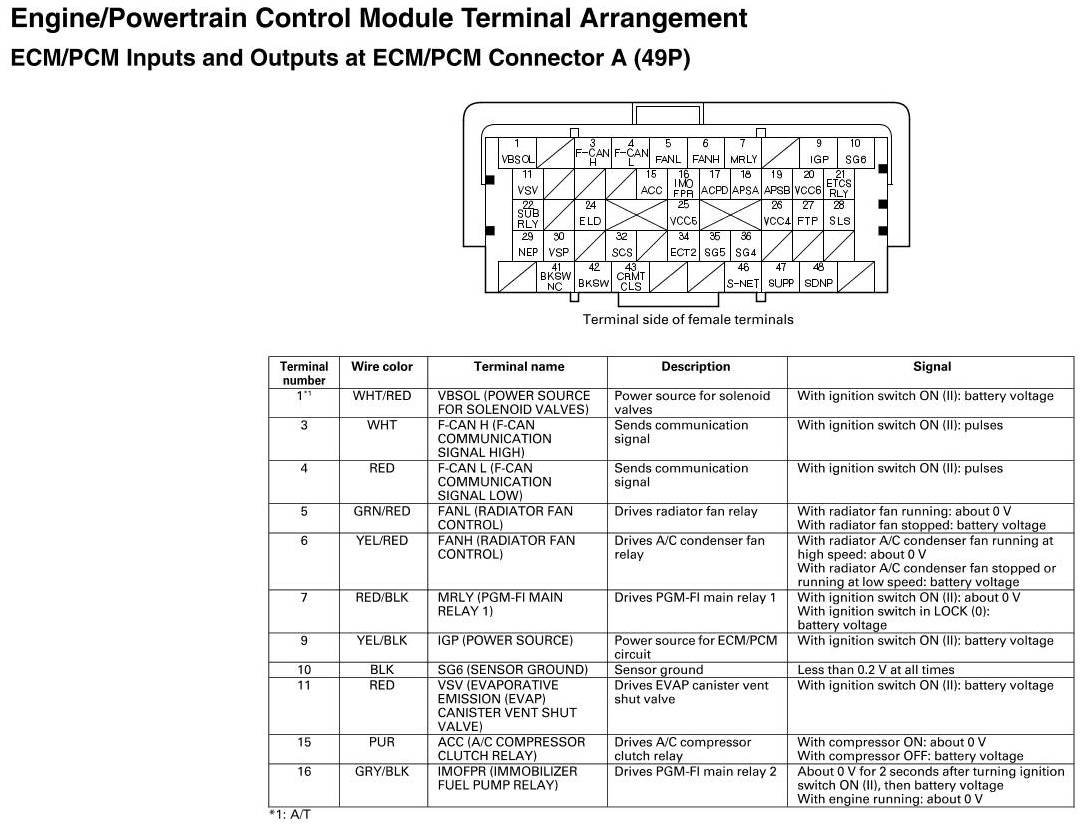

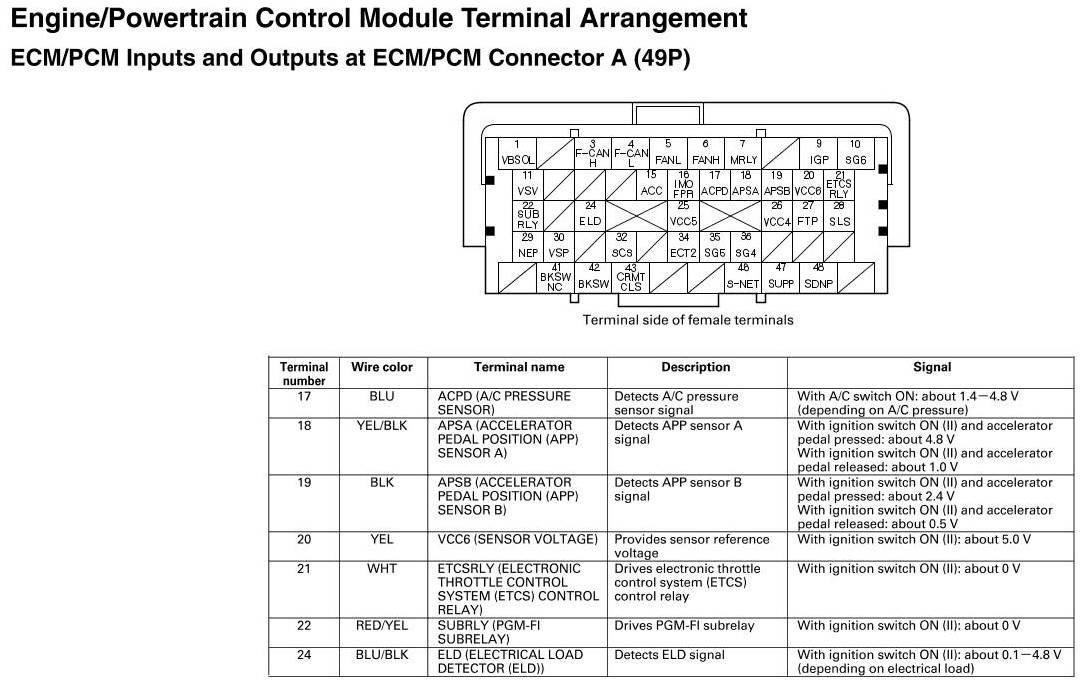

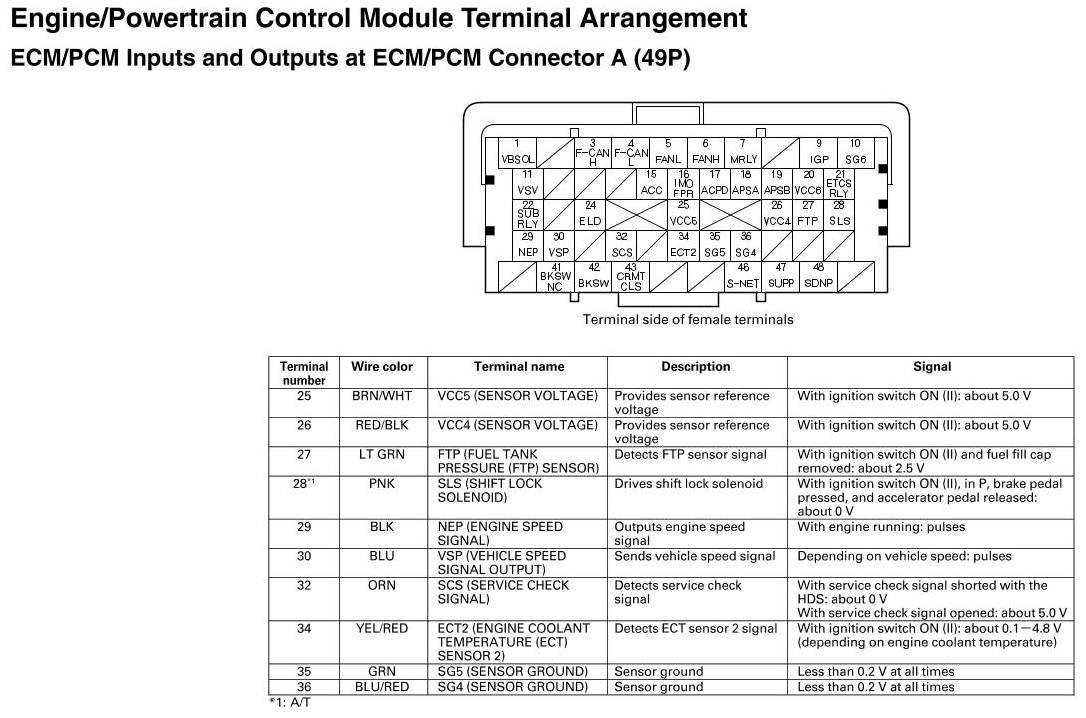

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (49P)
ECM/PCM Inputs and Outputs at ECM/PCM Connector A (49P)
