Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

1. Remove the front bumper:

- Sedan Front Bumper Removal / Installation
- Sport Wagon Front Bumper Removal / Installation

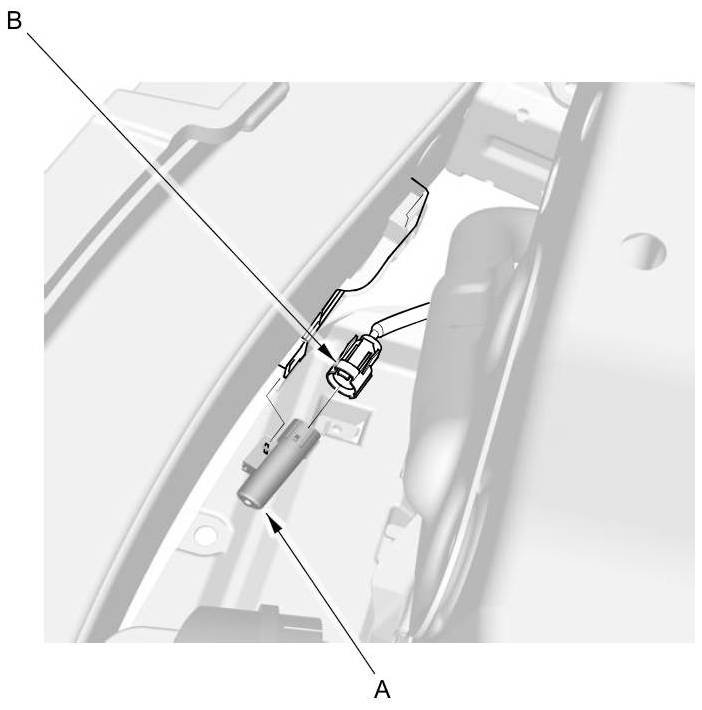

2. Release the lock, then remove the outside air temperature sensor (A) from the front bumper beam. Disconnect the 2P connector (B) from the outside air temperature sensor.





3. Install the sensor in the reverse order of removal.
