LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2012
>>
TSX Sedan L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

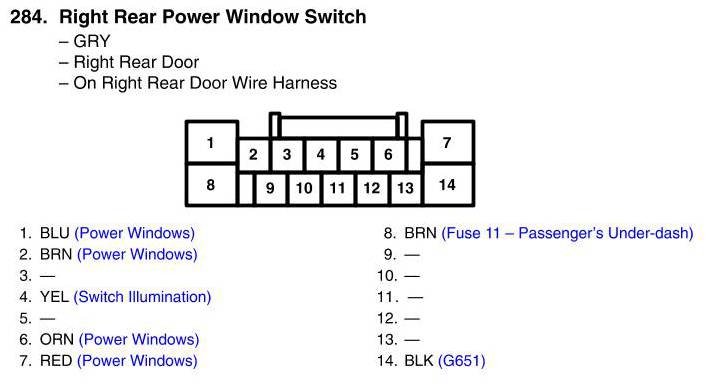

Right Rear Power Window Switch Connector View
Right Rear Power Window Switch Connector View
