Acura
>>
2012
>>
TSX Sedan L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

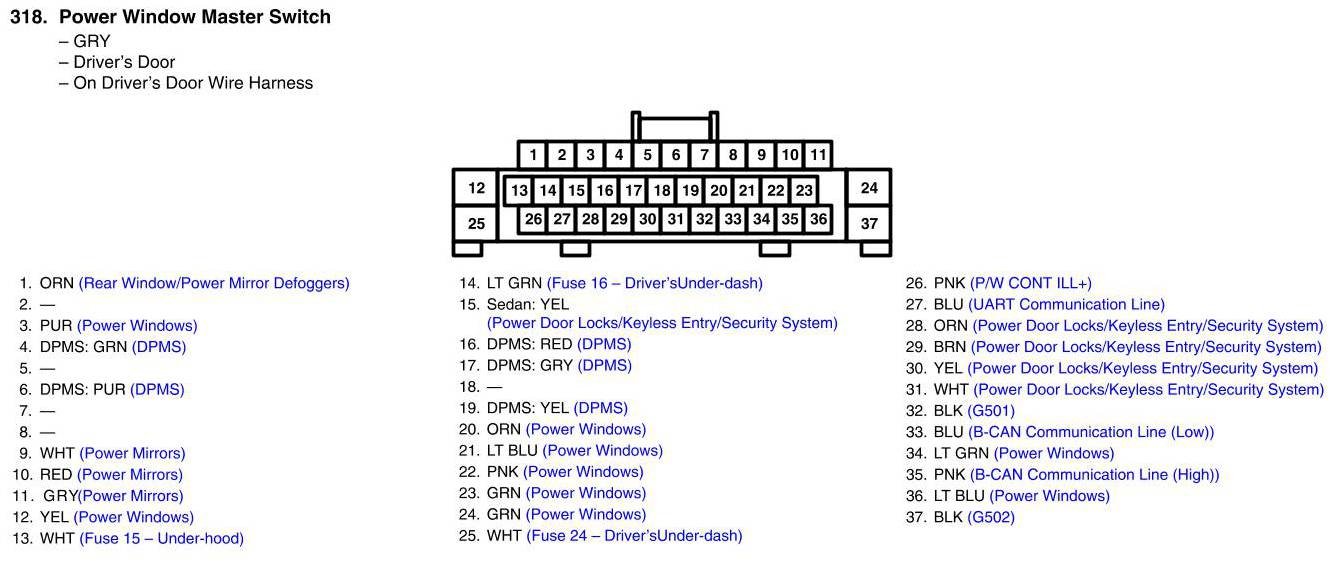

Power Window Master Switch Connector View
Power Window Master Switch Connector View
