Power Seat Motor Position Sensor
>>

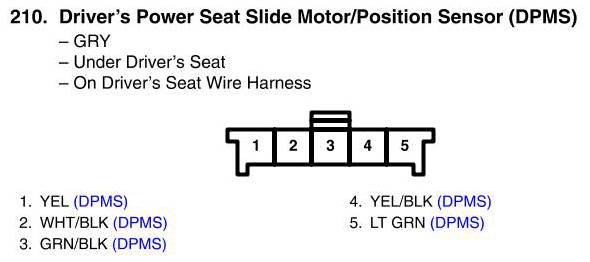

Driver's Power Seat Slide Motor/Position Sensor Connector View (DPMS)
Driver's Power Seat Slide Motor/Position Sensor Connector View (DPMS)
