Home >> Acura >> 2012 >> TSX Sedan L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Driver's Under-dash Fuse/Relay Box Connector View

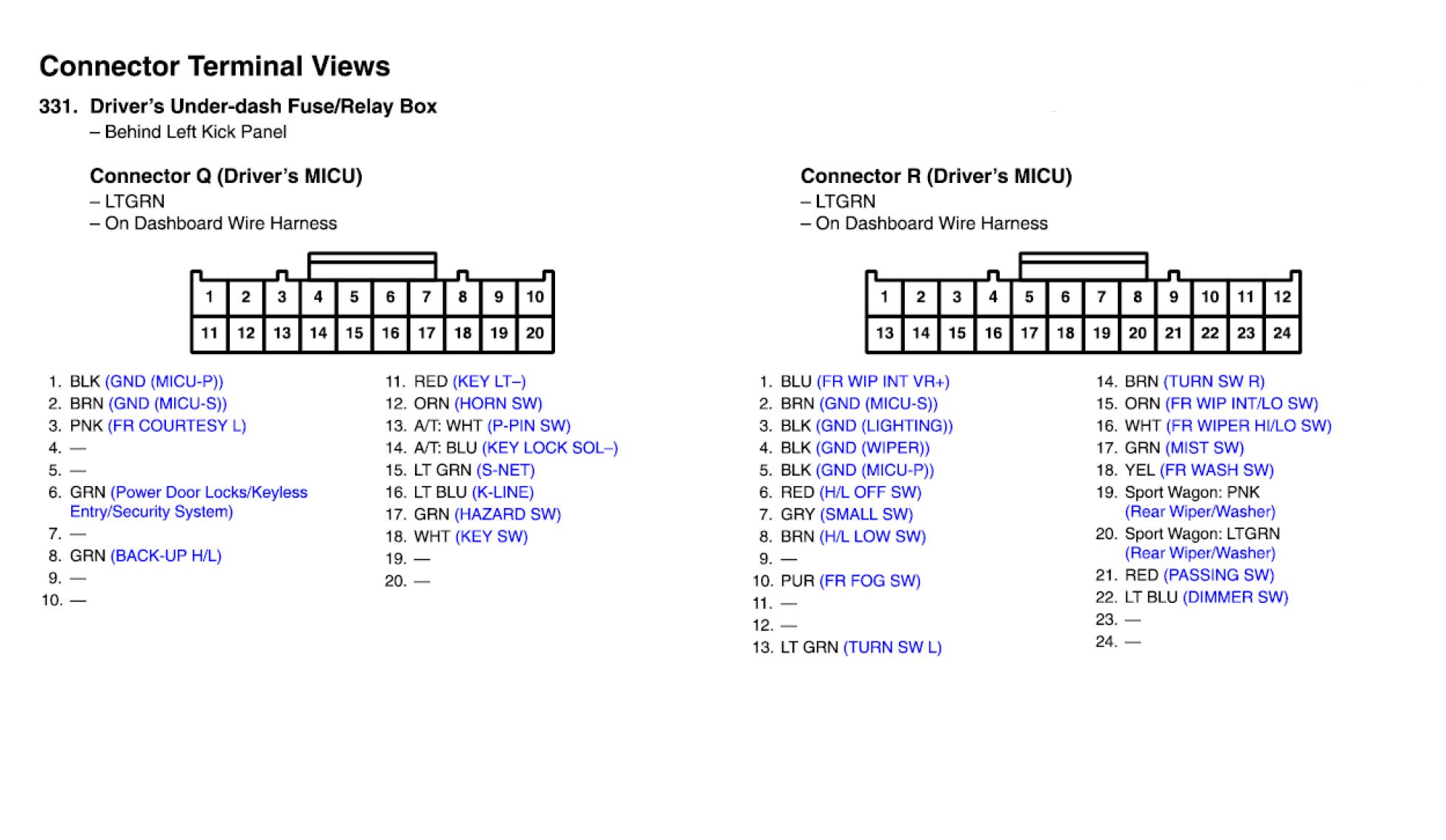

Driver's Under-dash Fuse/Relay Box Connector View
