Home >> Acura >> 2012 >> TSX Sedan L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 242 - Mode Control Motor Connector View

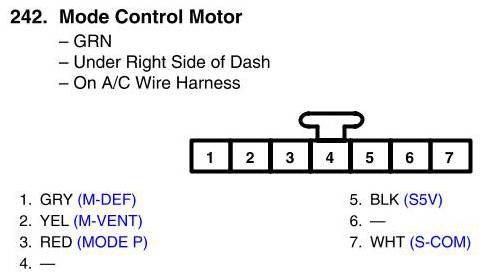

View 242 - Mode Control Motor Connector View
