Home
>>
Acura
>>
2012
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

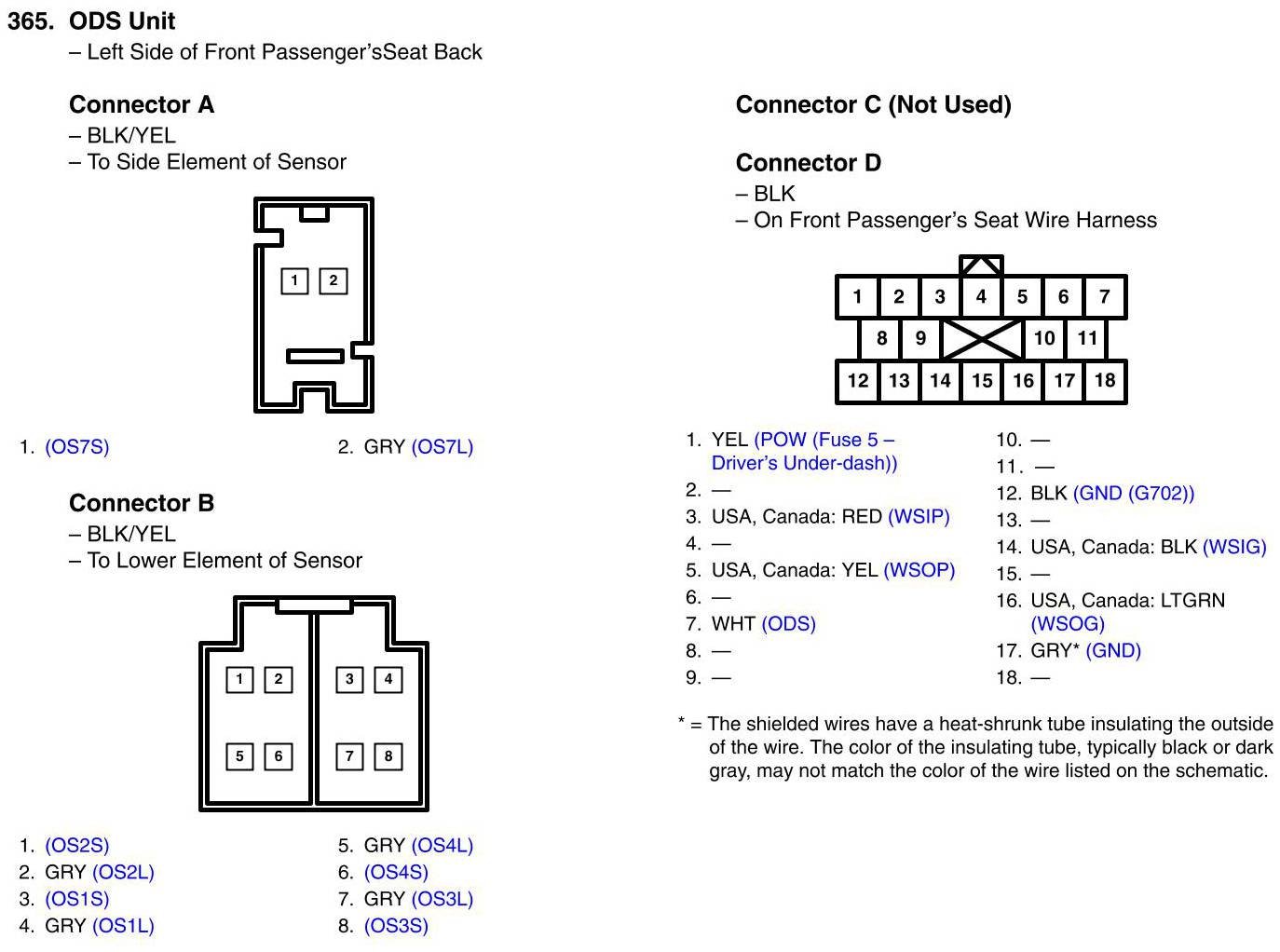

Seat Occupant Classification Module - Air Bag
Seat Occupant Classification Module - Air Bag
