Home
>>
Acura
>>
2012
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry
>>
System Diagram
>>

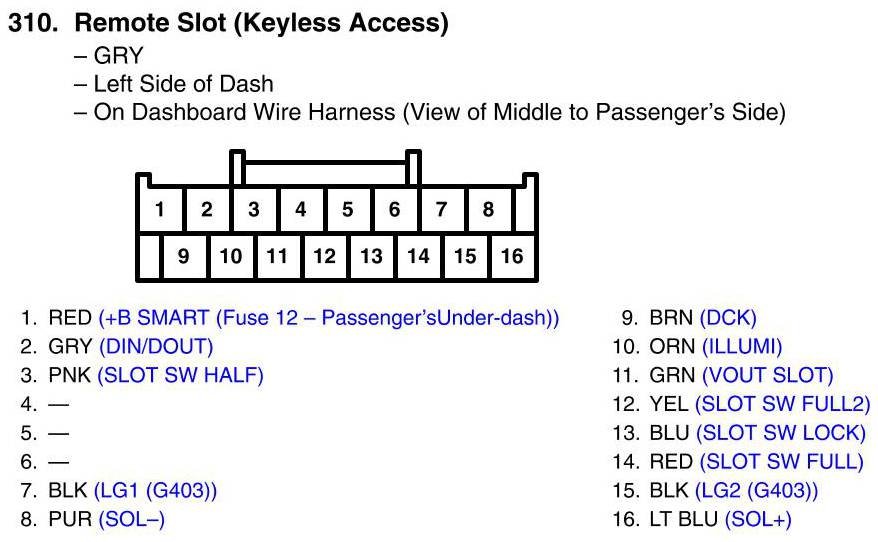

Remote Slot (Keyless Access) Connector View
Remote Slot (Keyless Access) Connector View
