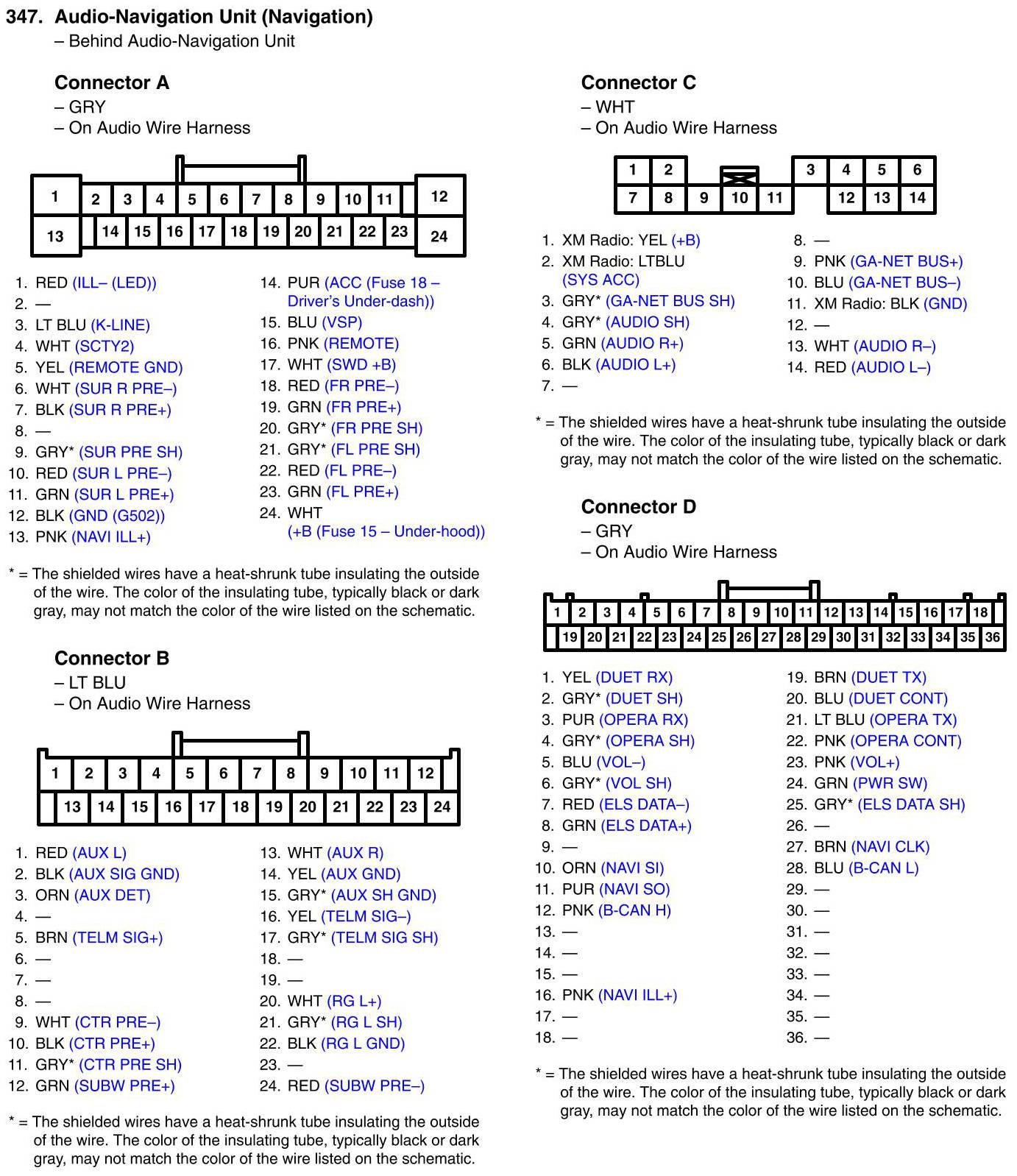

View 347 - Audio-Navigation Unit (Navigation) Connector View
View 347 - Audio-Navigation Unit (Navigation) Connector View
