Home >> Acura >> 2012 >> RL V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Diagrams >> Connector Views >> Front Passenger's MPCS Unit Connector View

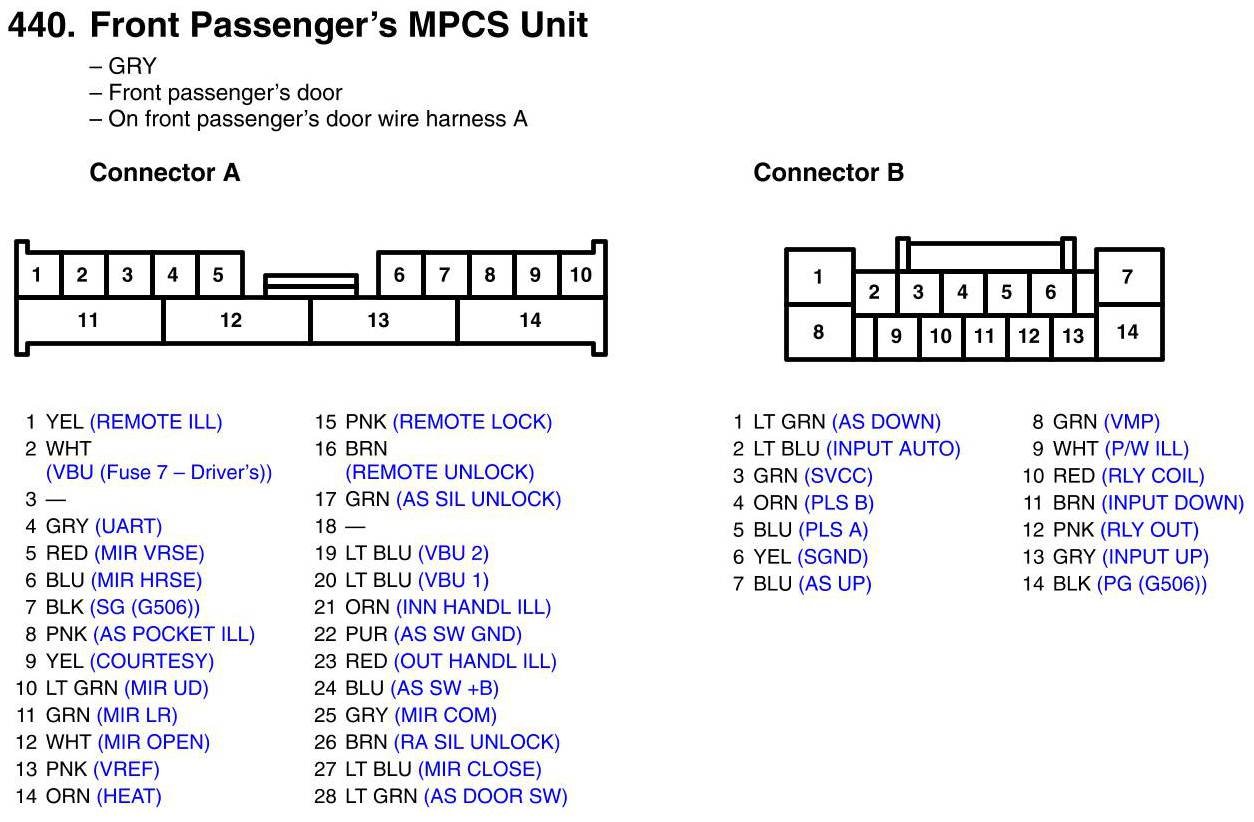

Front Passenger's MPCS Unit Connector View
