Connector Locations




Fuse/Relay Box Connector Locations

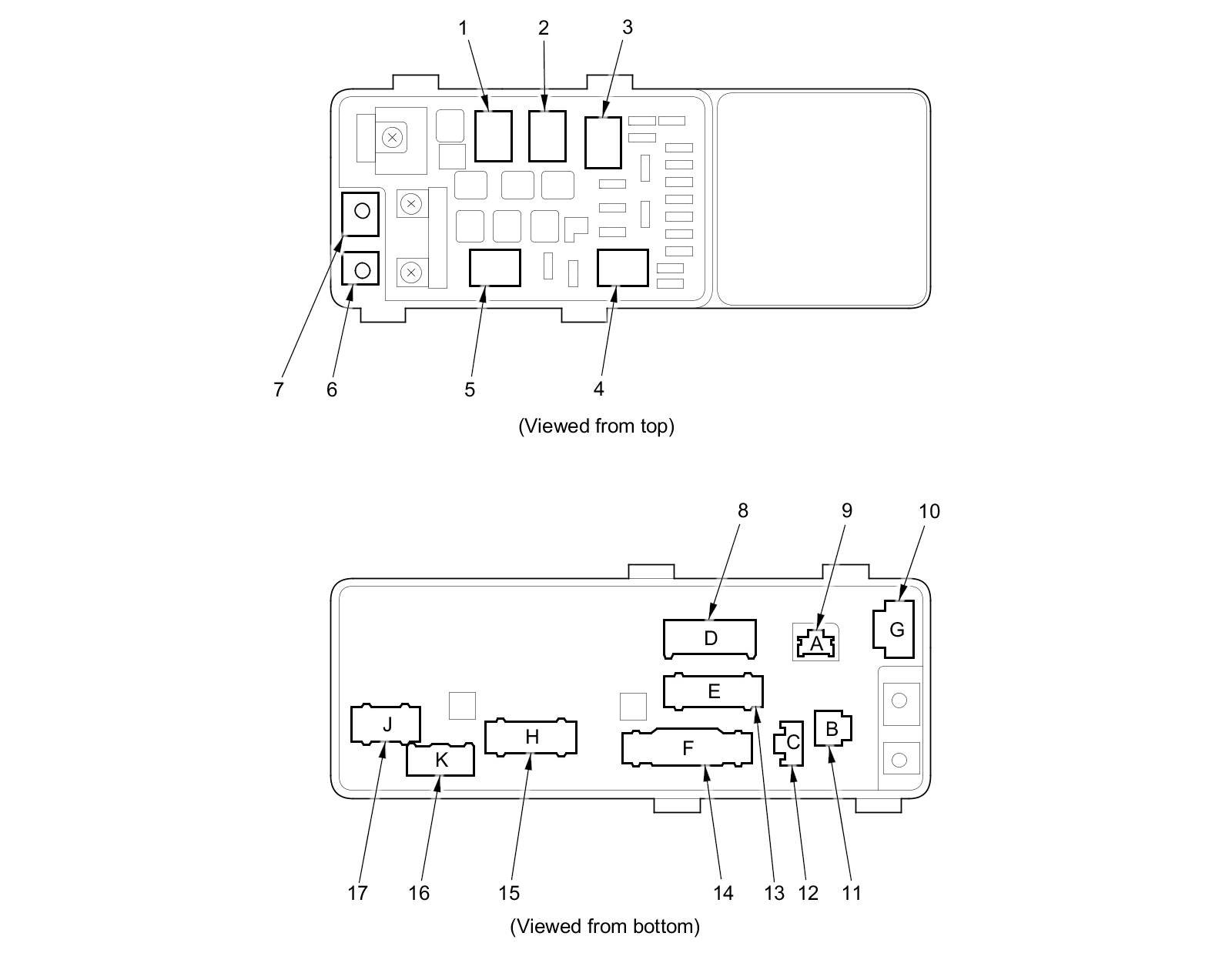

Under-Hood Fuse/Relay Box









Auxiliary Under-Hood Relay Box

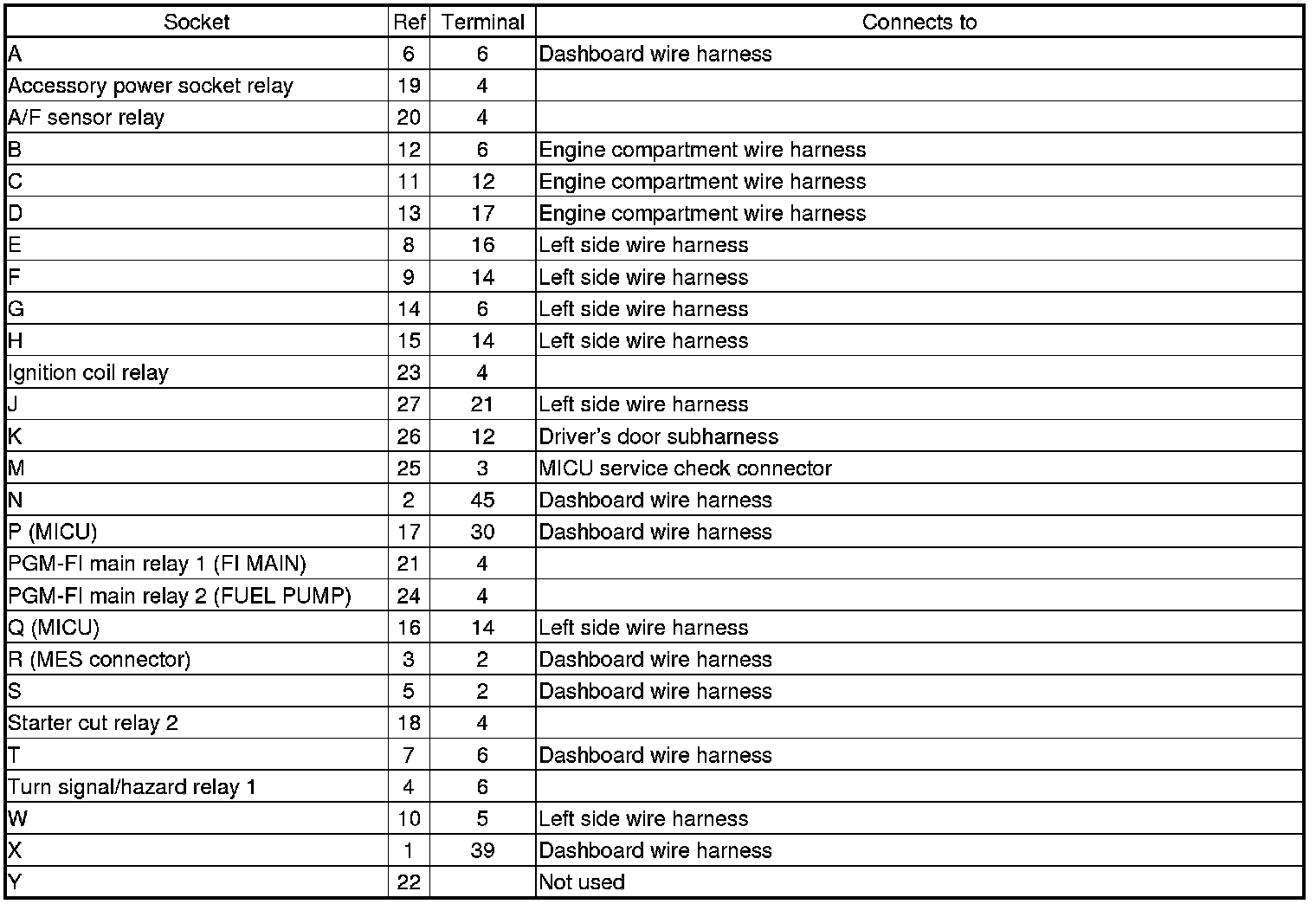

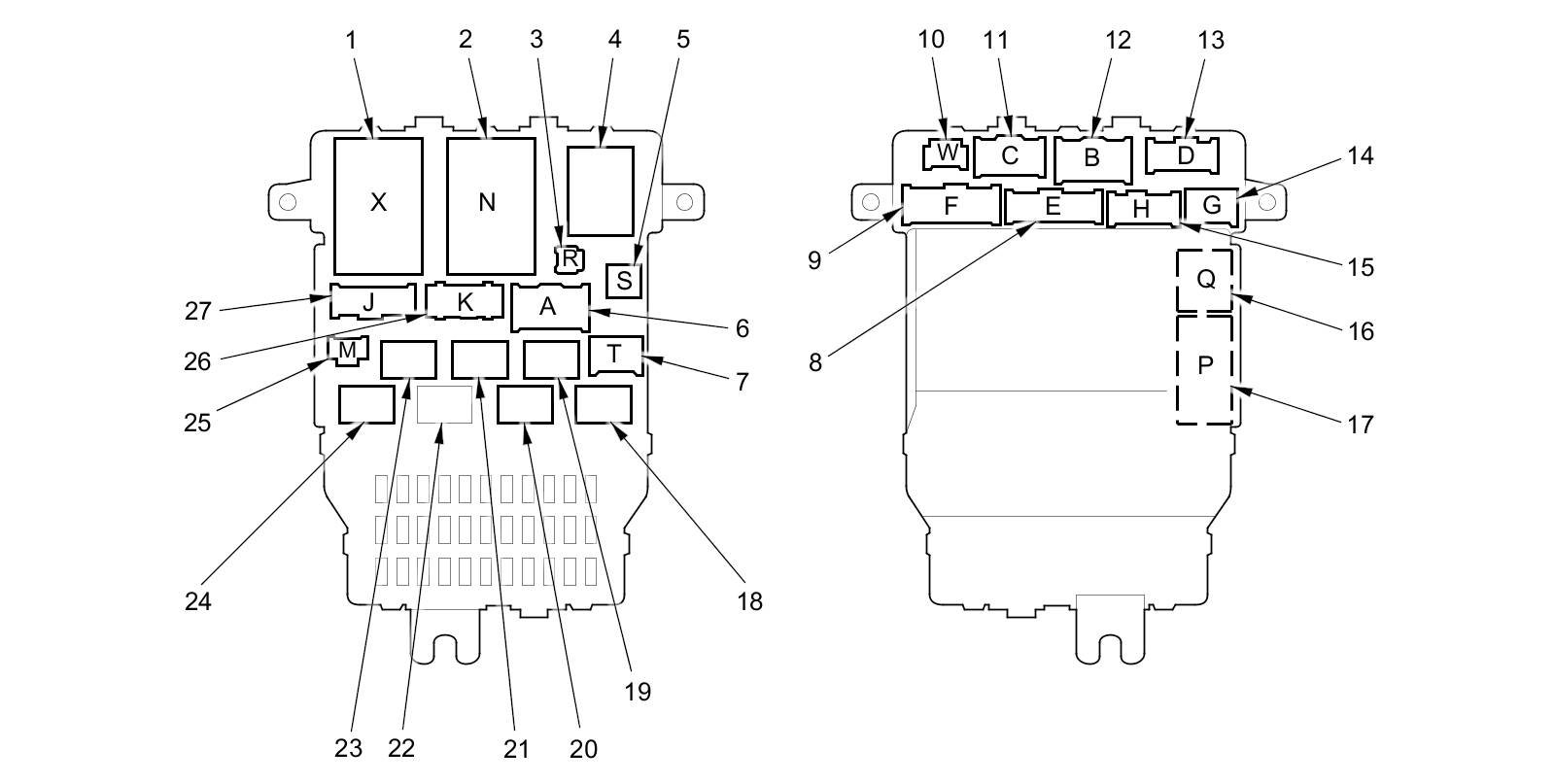

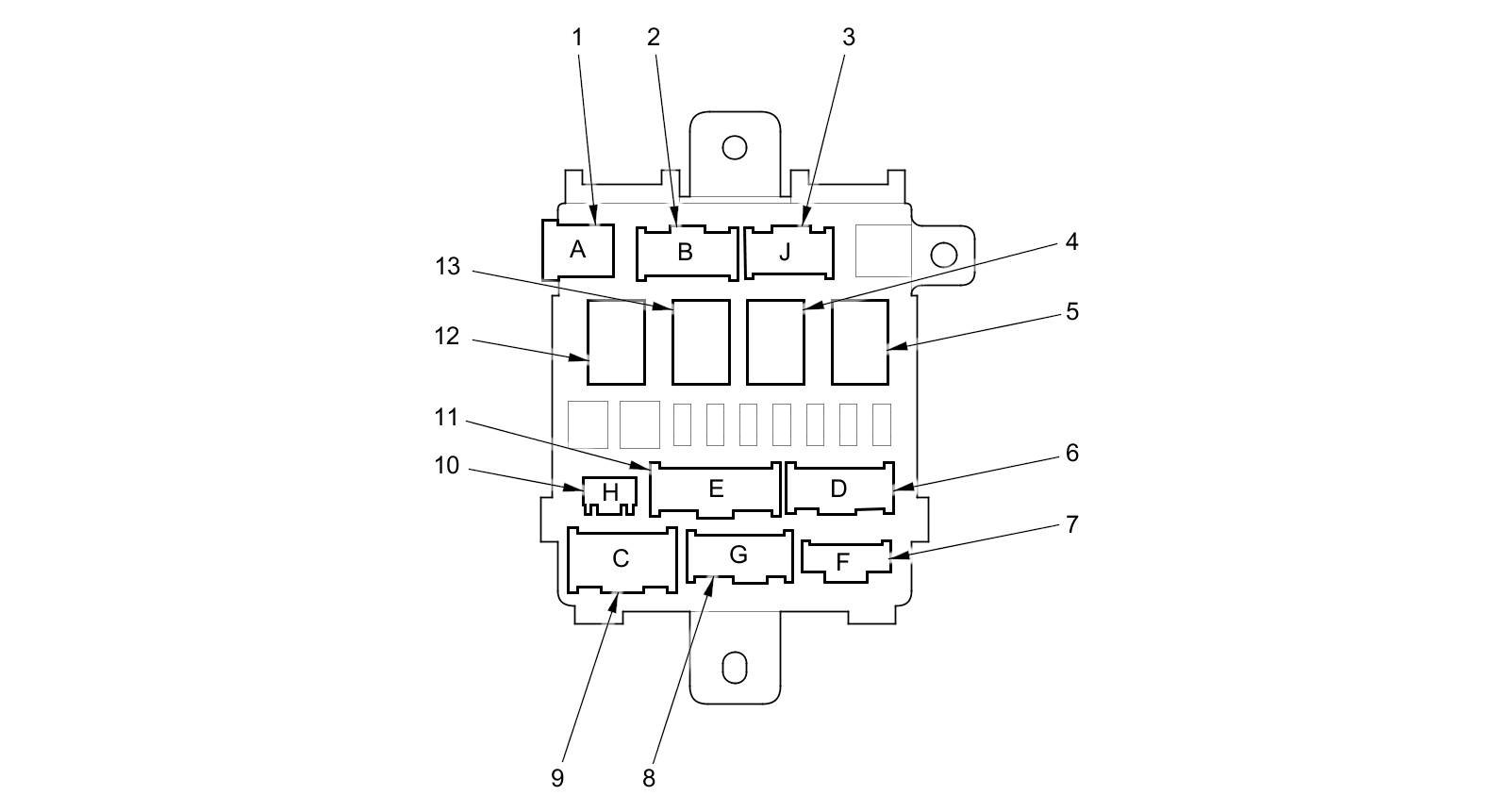

Driver's Under-Dash Fuse/Relay Box









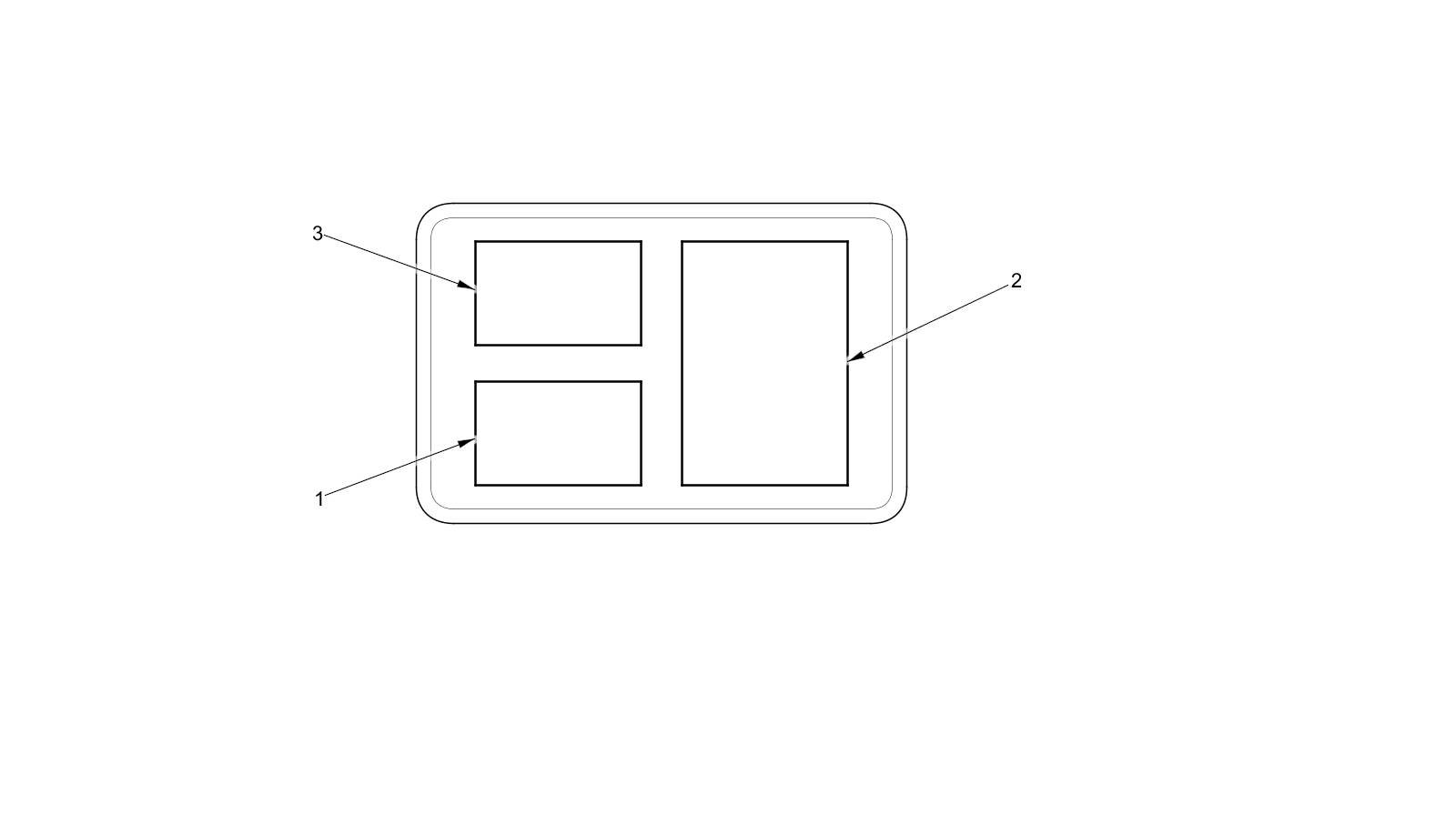

Passenger's Under-Dash Fuse/Relay Box














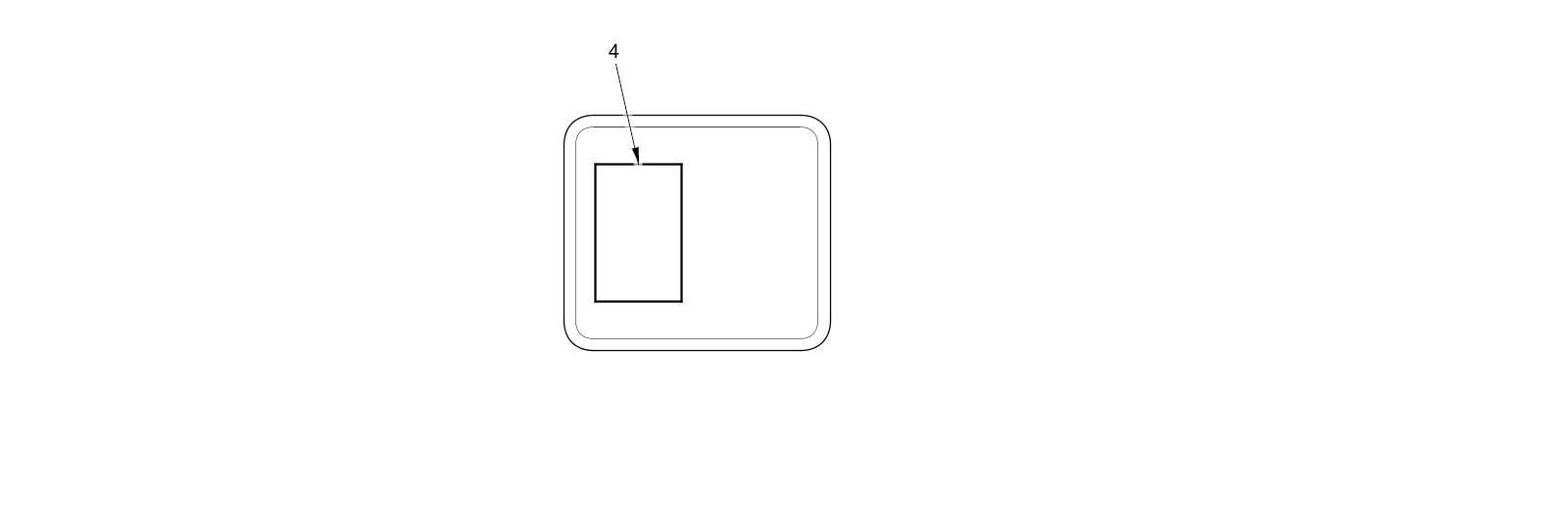

Auxiliary Under-Dash Fuse/Relay Box










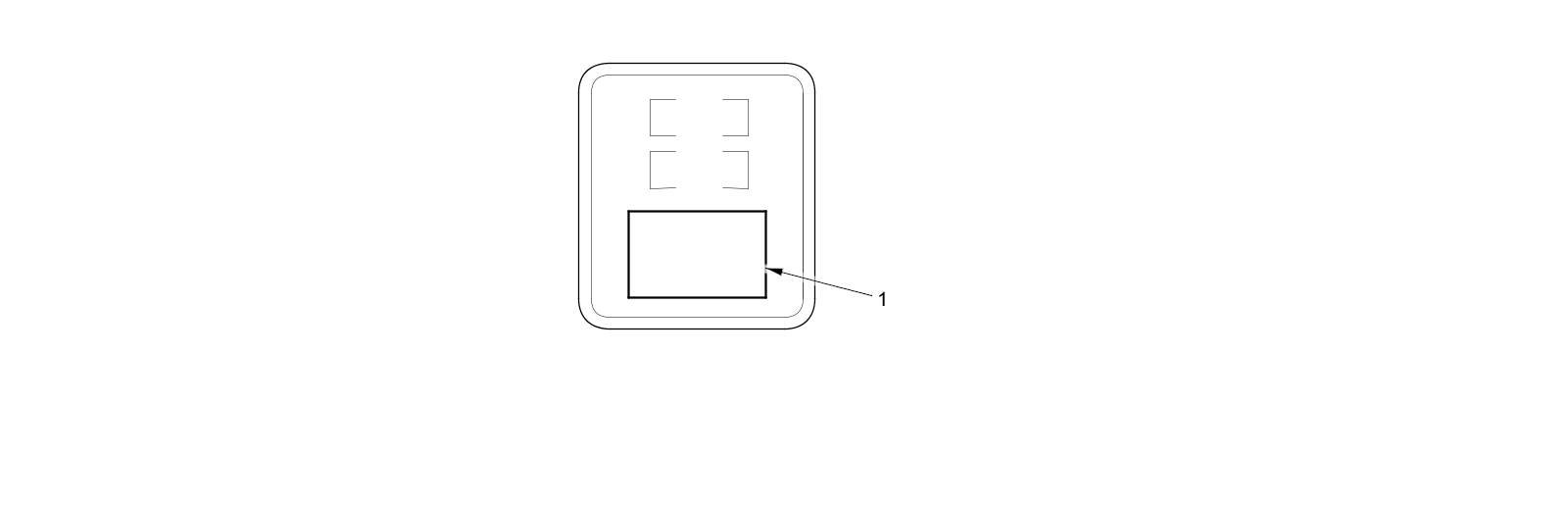

Driver's Auxiliary Under-Dash Relay Box










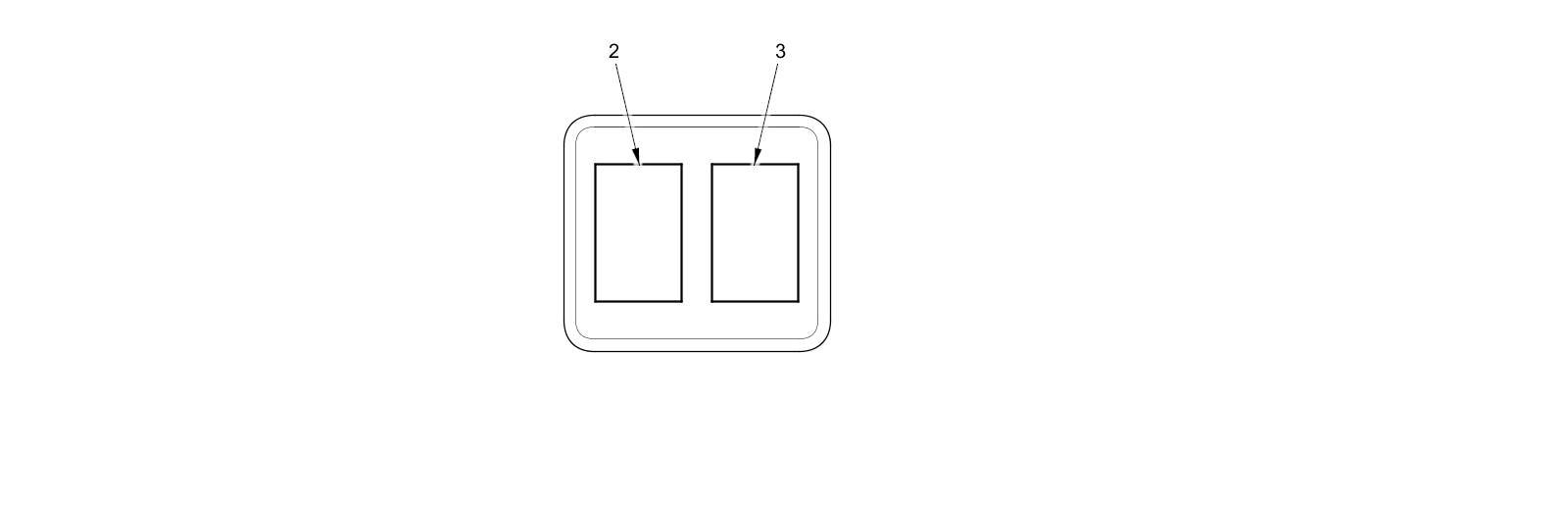

Passenger's Auxiliary Under-Dash Relay Box (Canada models)
