Power Trunk / Liftgate Lock Switch
>>

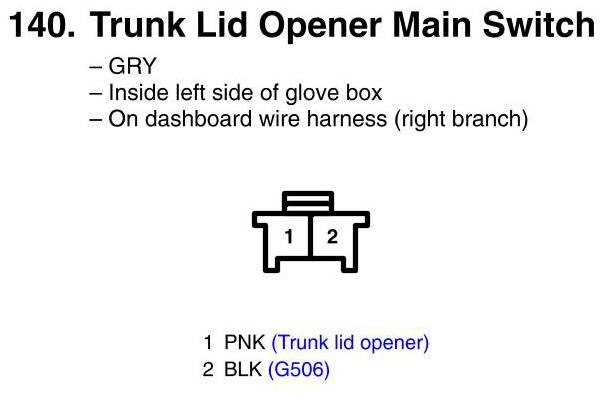

Trunk Lid Opener Main Switch Connector View
Trunk Lid Opener Main Switch Connector View
