Home >> Acura >> 2012 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry >> System Diagram >> Driver's Door Outer Handle Light/Touch Sensor Connector View

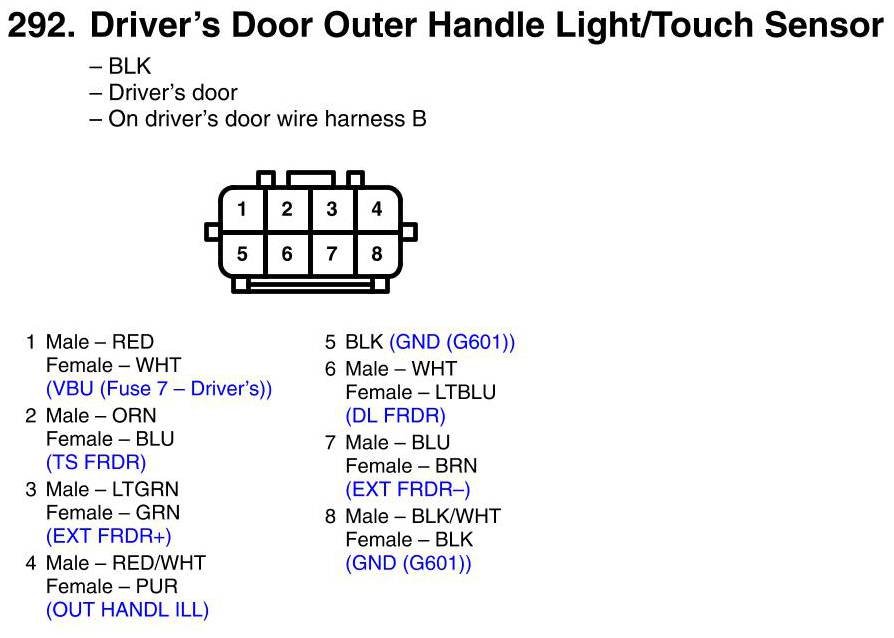

Driver's Door Outer Handle Light/Touch Sensor Connector View
