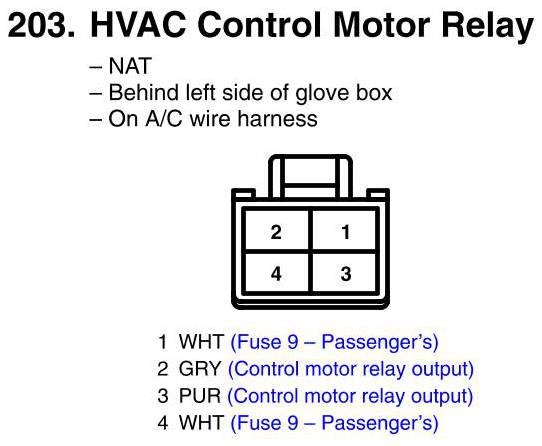

View 203 - HVAC Control Motor Relay Connector View
View 203 - HVAC Control Motor Relay Connector View
