LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2012
>>
RL V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

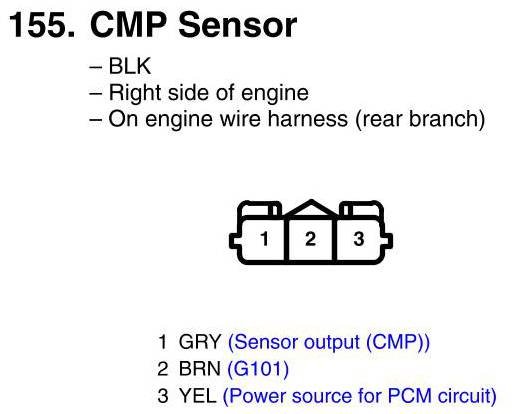

View 155 - CMP Sensor Connector View
View 155 - CMP Sensor Connector View
