Power Door Lock Switch Test

Power Door Lock Switch Test

1. Remove the door panel Front Door Panel Removal/Installation.

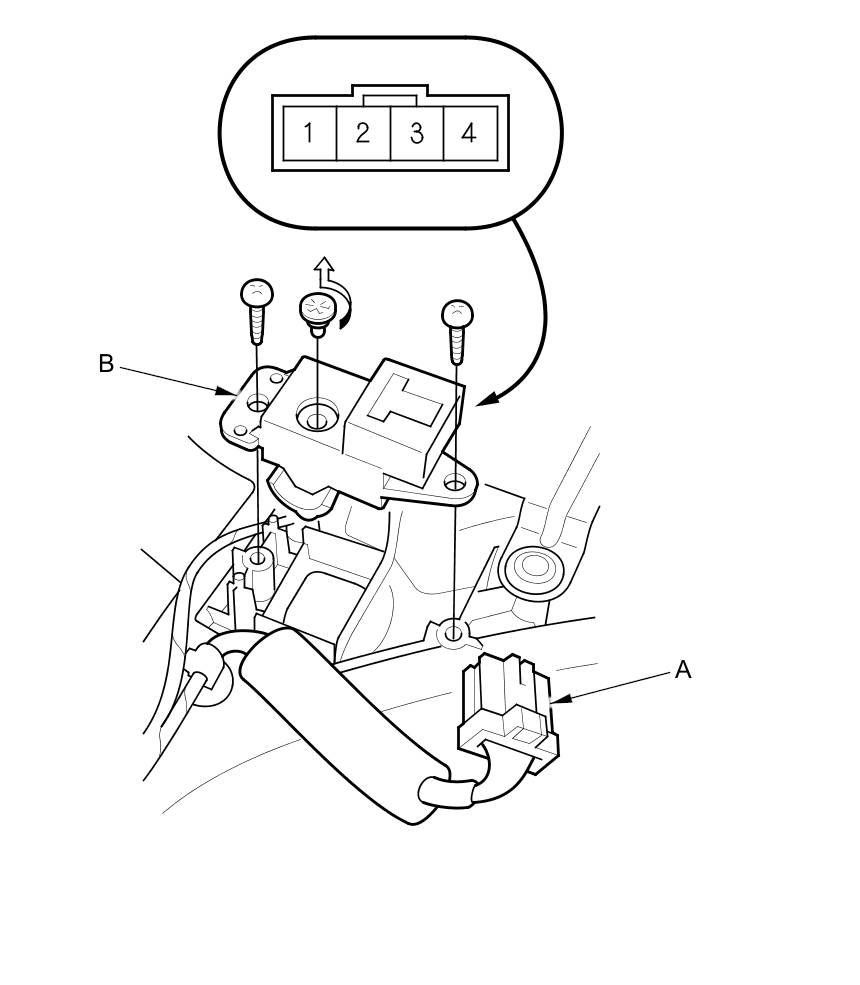

2. Disconnect the 4P connector (A), remove the two screws, then remove the door lock switch (B).

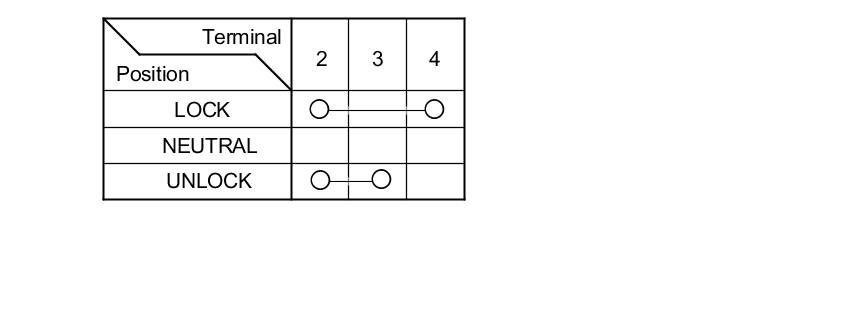

3. Check for continuity between the terminals in each switch position according to the table.





4. Check for continuity between the terminals No. 1 (+) and No. 2 (-) (bulb check). There should be continuity.

5. If the continuity is not as specified, replace the bulb or switch.
