Home >> Acura >> 2012 >> RDX FWD L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PCM Inputs And Outputs At Connector C (44P)

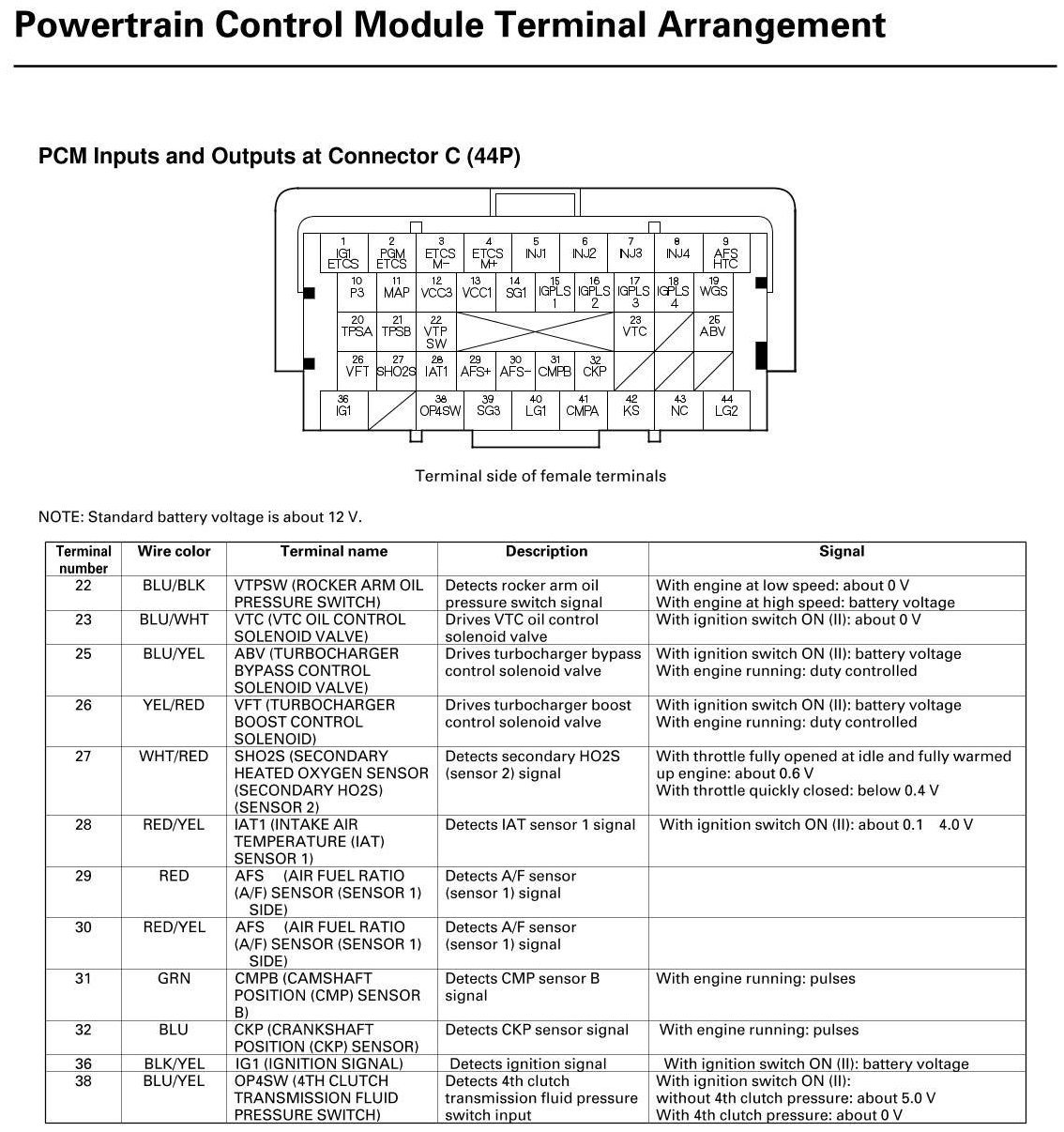

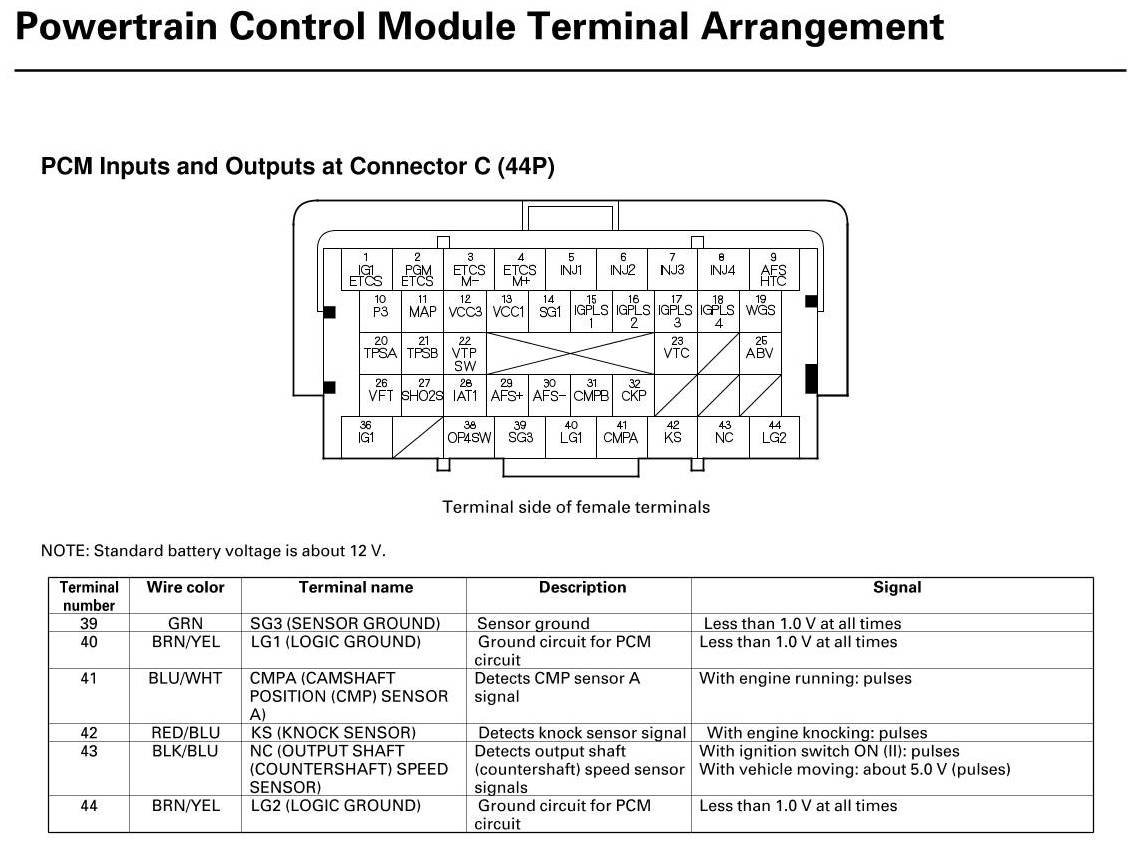

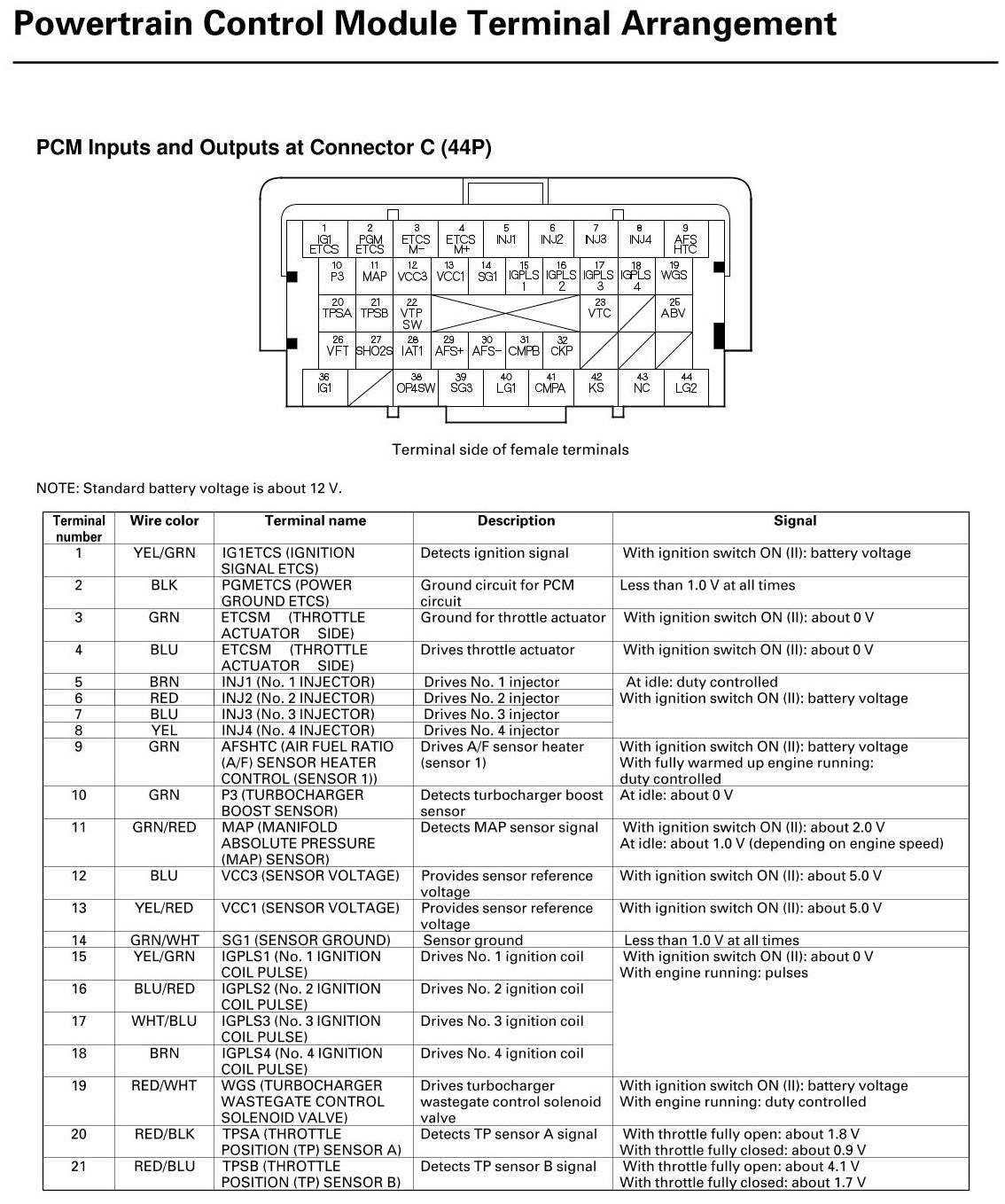

PCM Inputs And Outputs At Connector C (44P)
