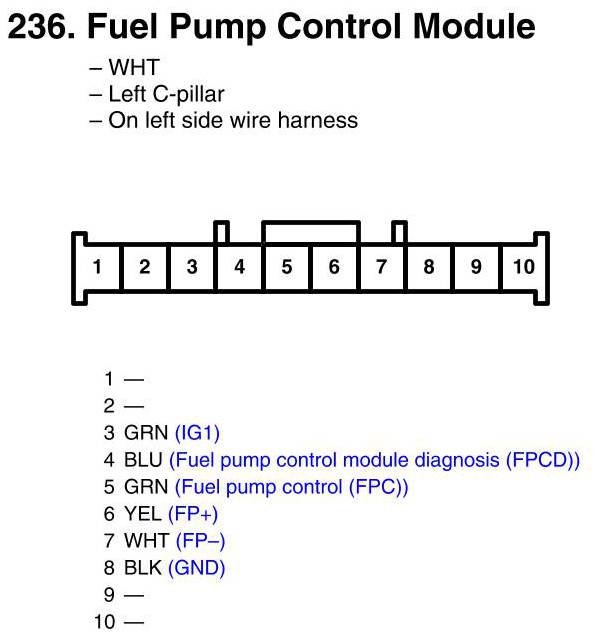

View 236 - Fuel Pump Control Module Connector View
View 236 - Fuel Pump Control Module Connector View
