Fuse to Components Index




Fuse to Components Index

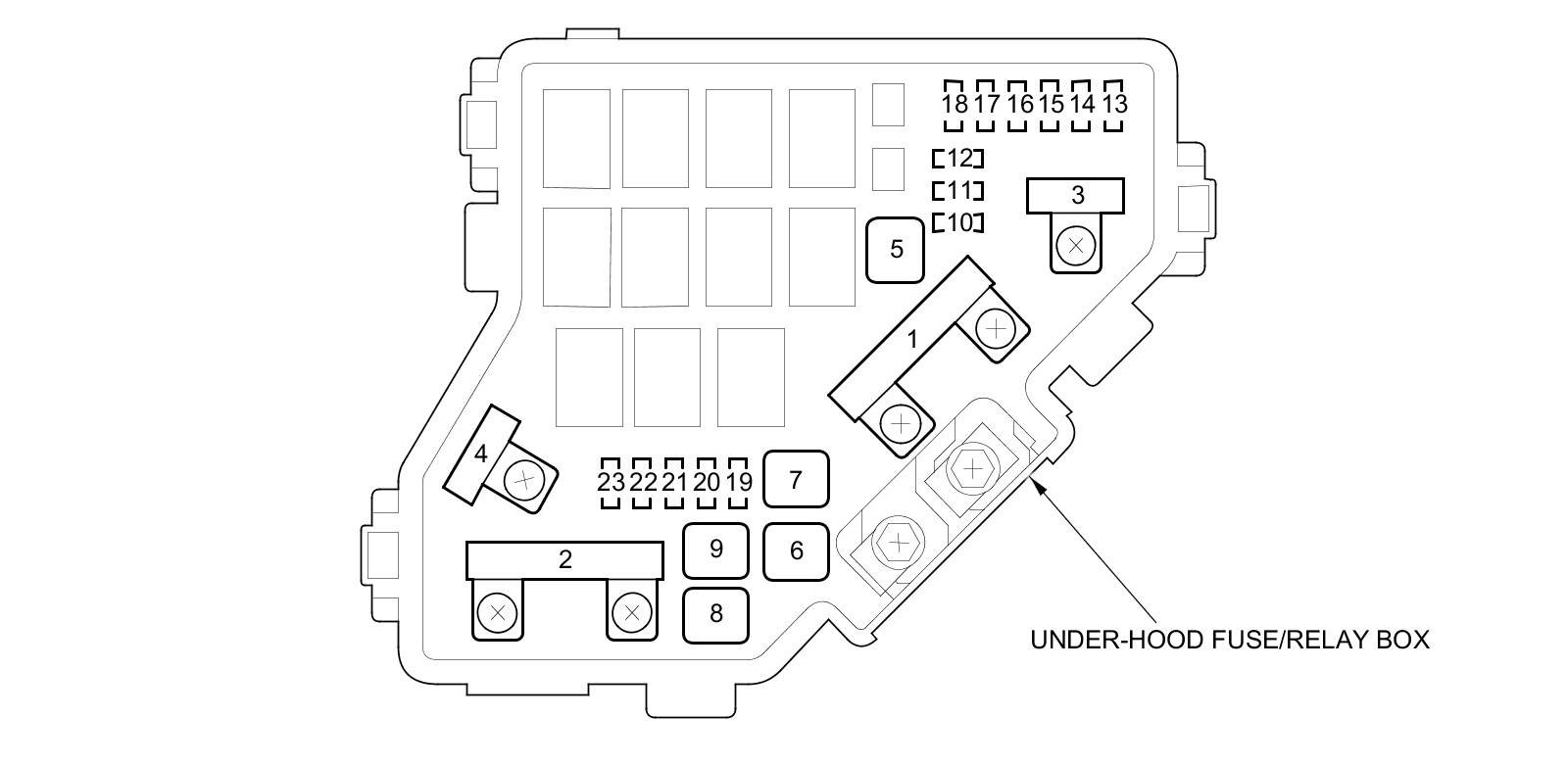

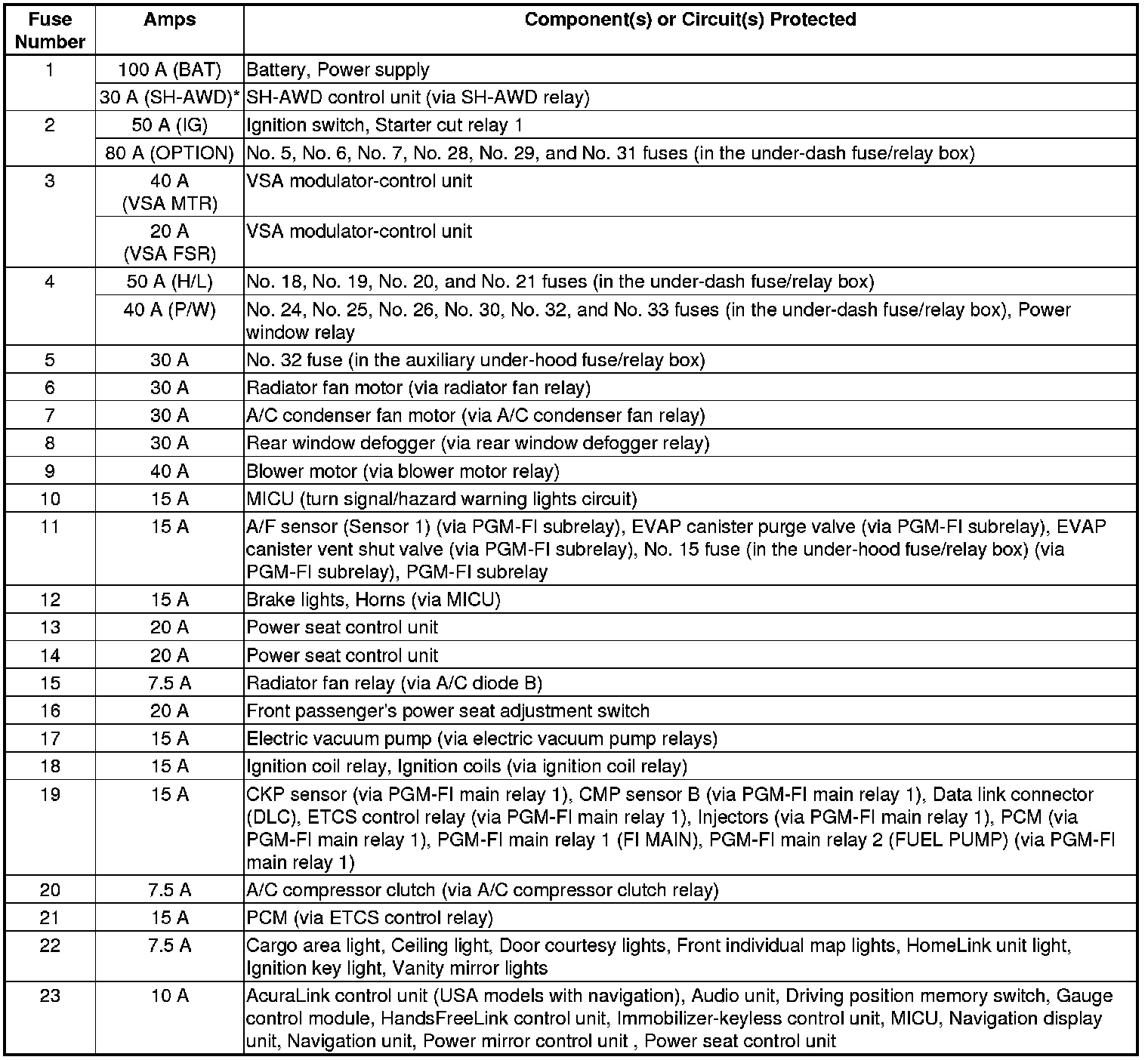

Under-Hood Fuse/Relay Box

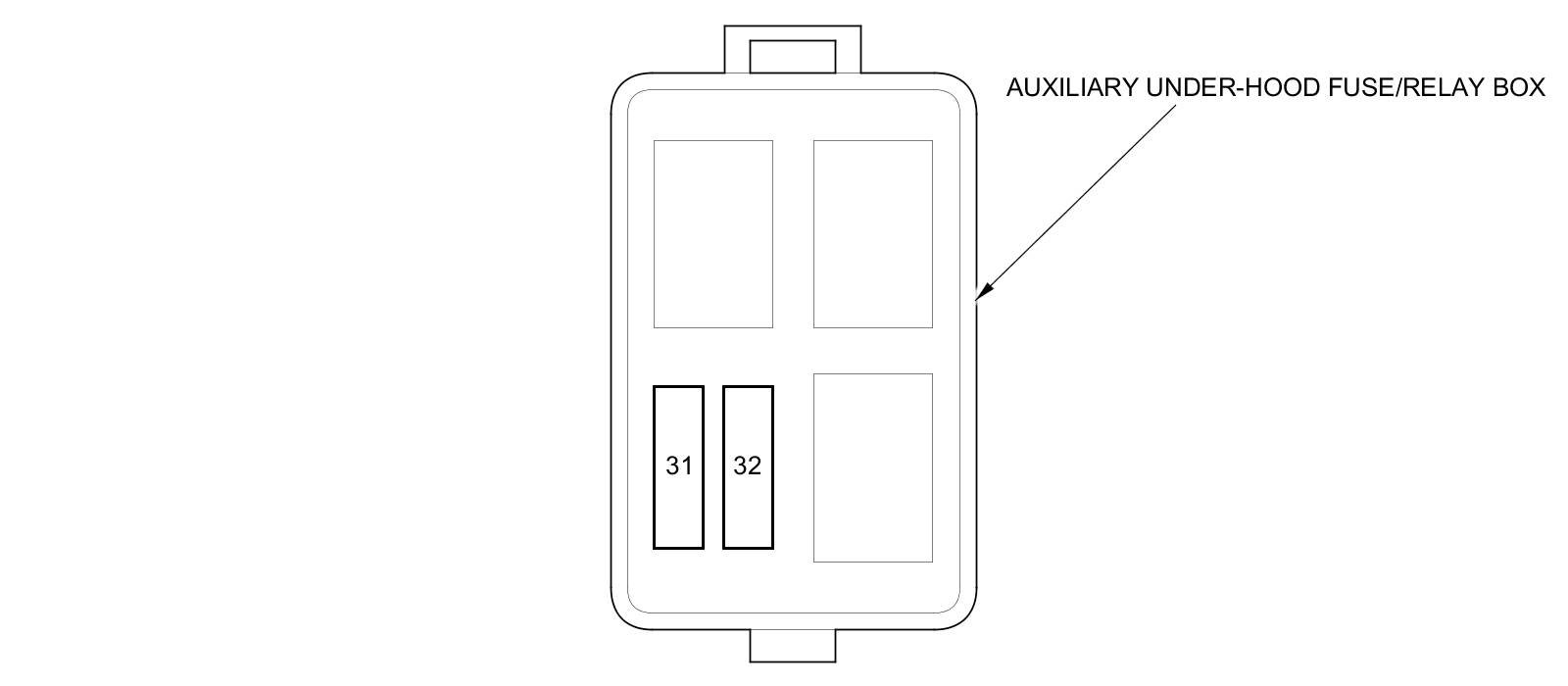

Auxiliary Under-Hood Fuse/Relay Box

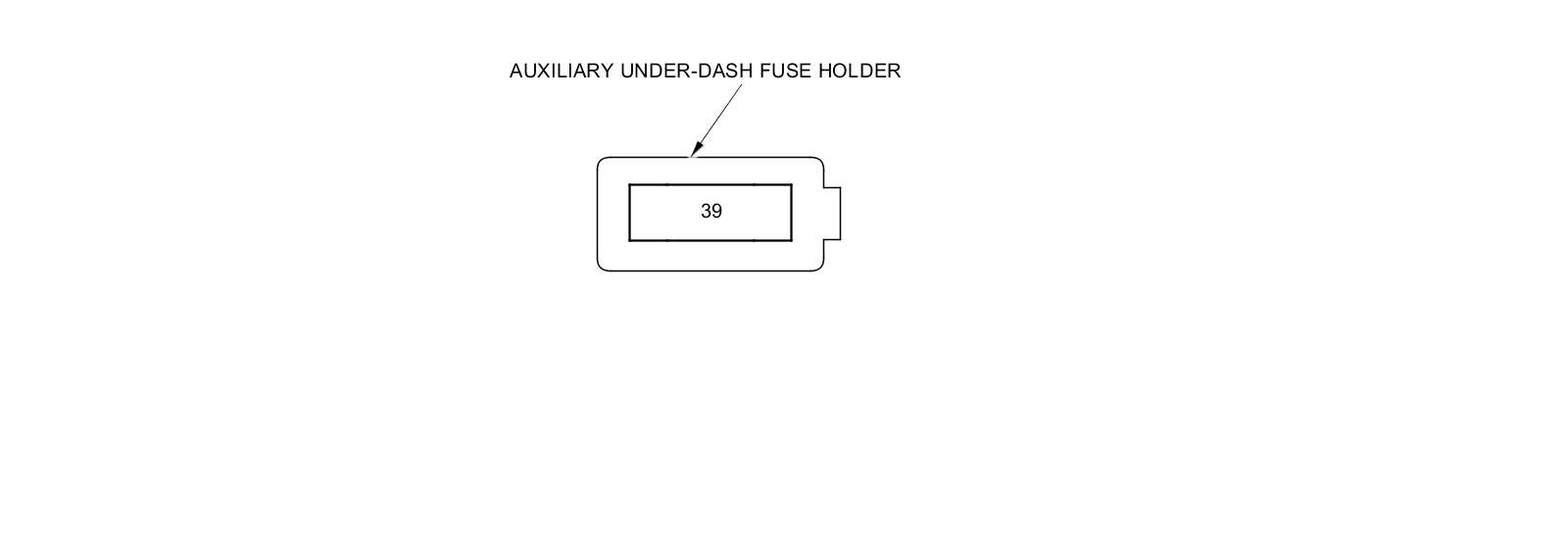

Auxiliary Under-Dash Fuse Holder

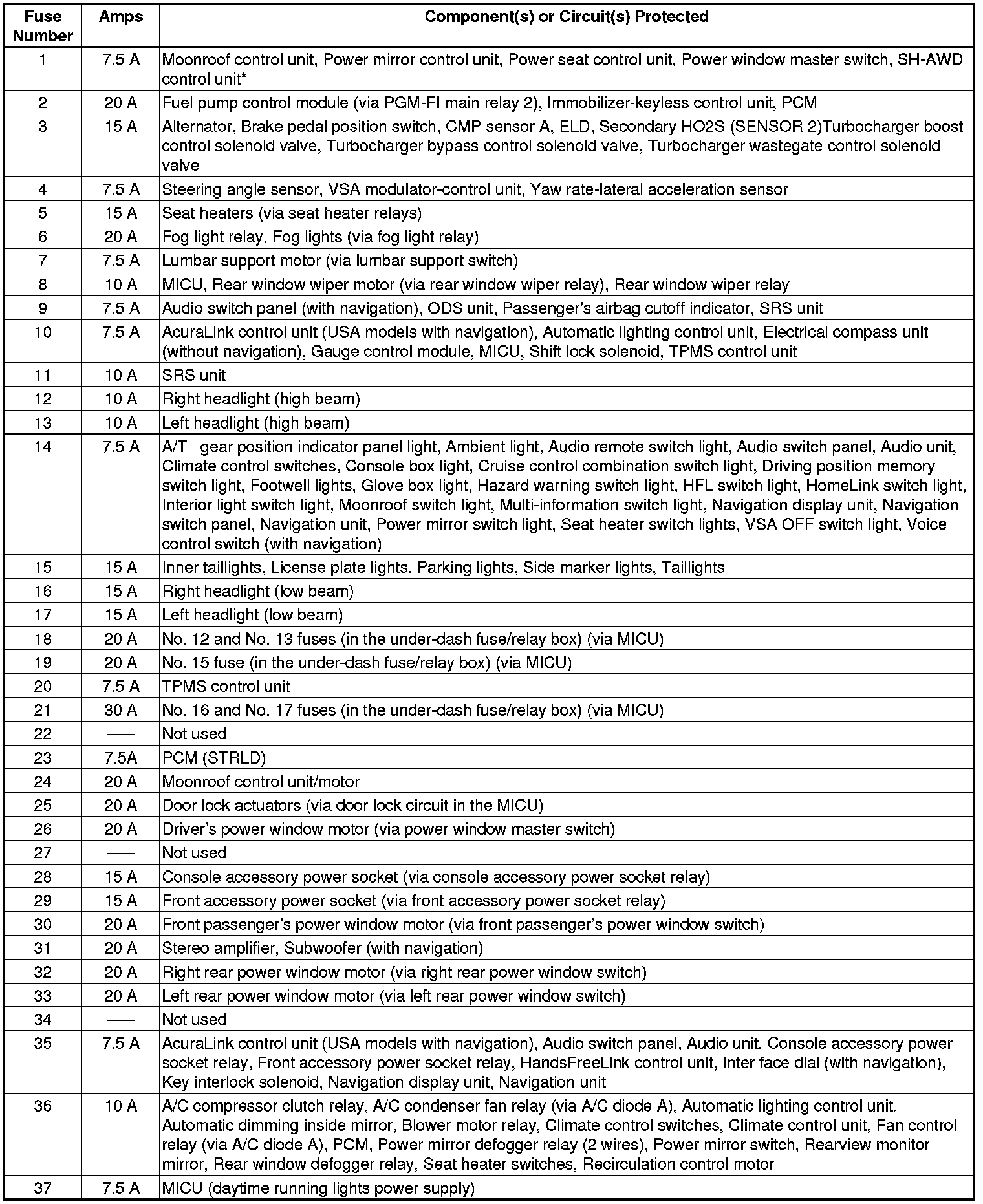

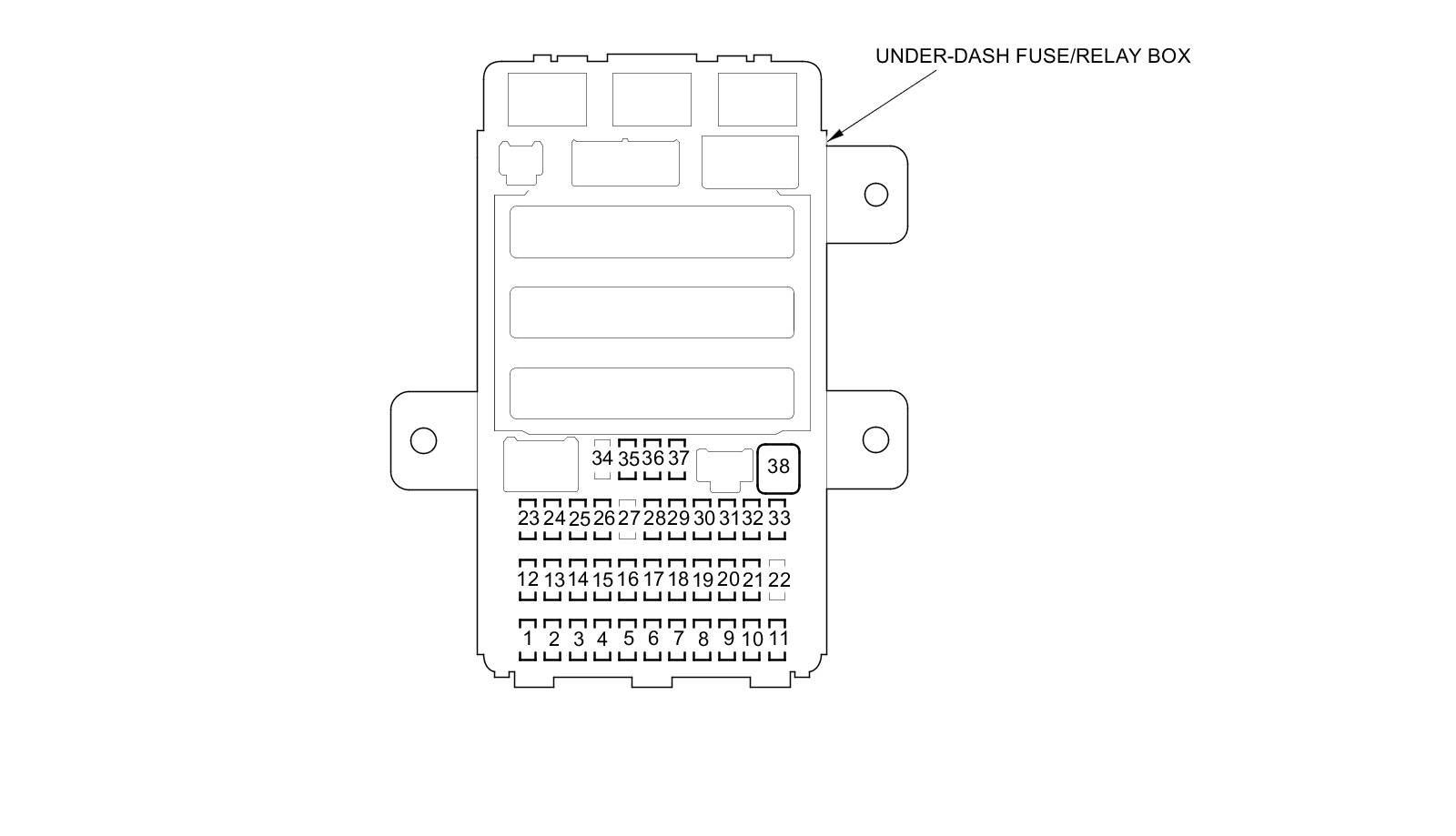

Under-Dash Fuse/Relay Box
