LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2012
>>
RDX AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>

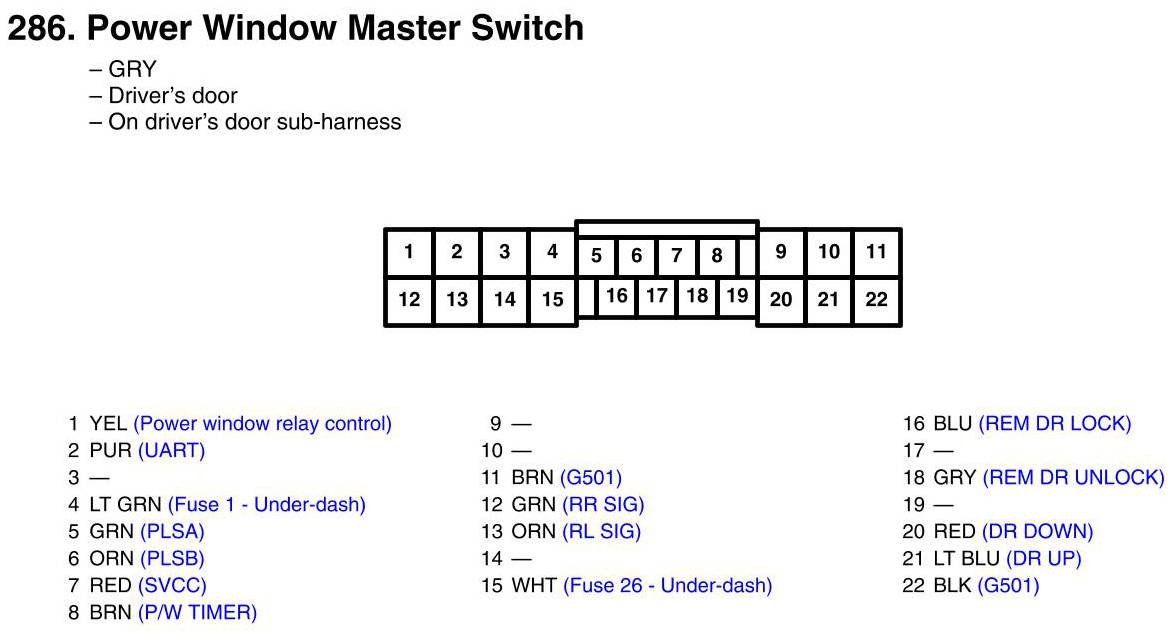

Power Window Master Switch Connector View
Power Window Master Switch Connector View
