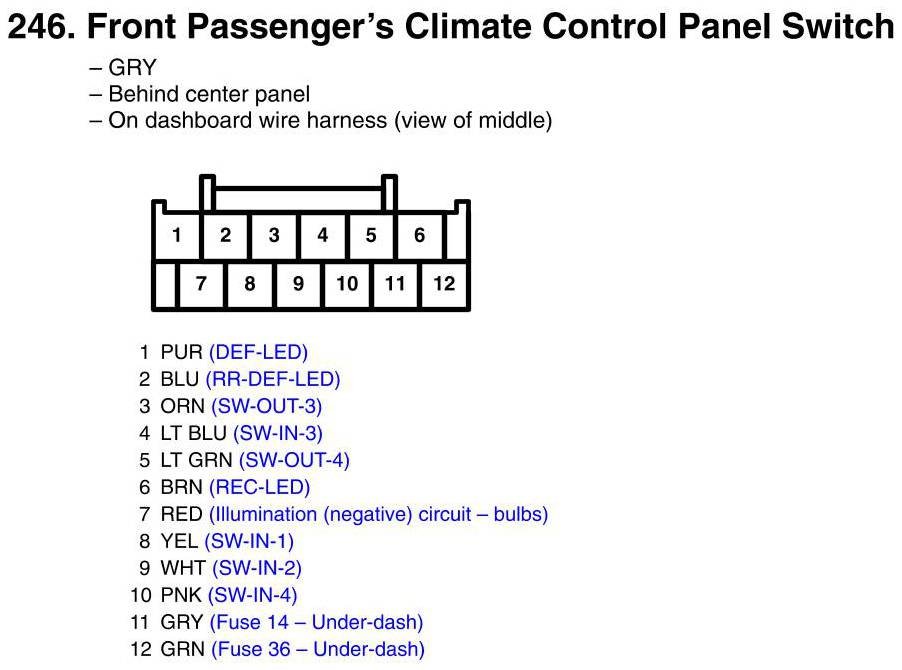

Front Passenger's Climate Control Panel Switch Connector View
Front Passenger's Climate Control Panel Switch Connector View
