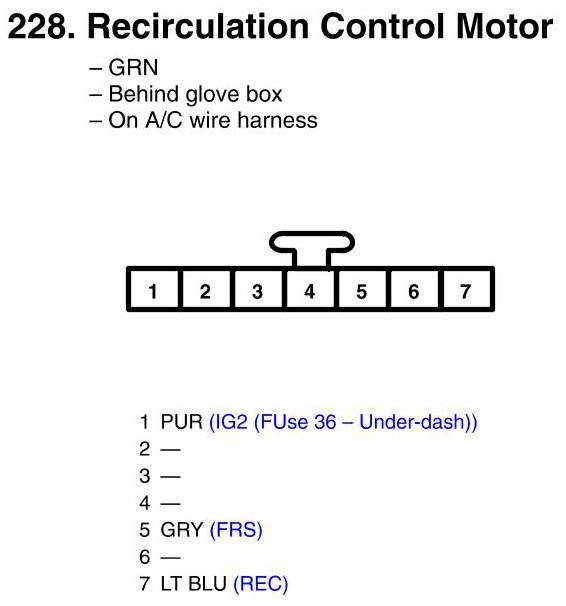

View 228 - Recirculation Control Motor Connector View
View 228 - Recirculation Control Motor Connector View
