Collision Mitigation Braking System (CMBS)
>>
Component Location Index
Component Location Index

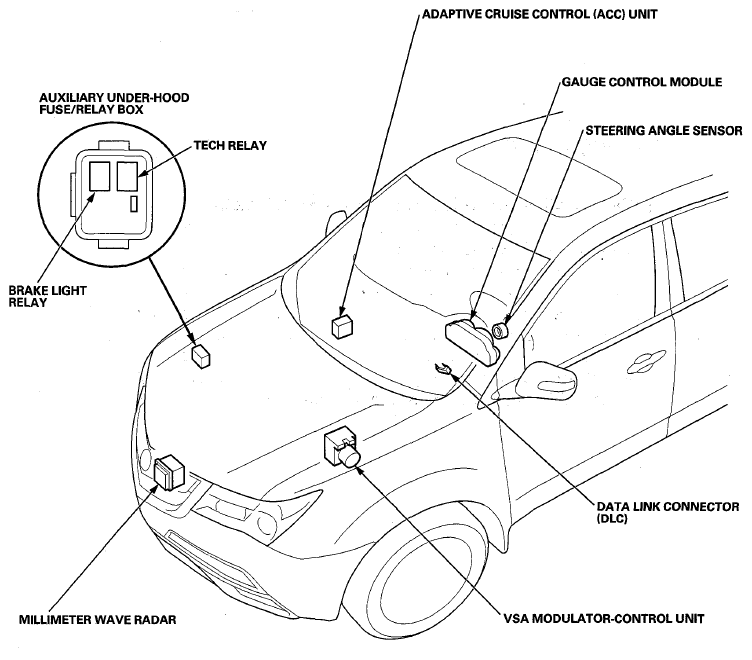

Fig 1: Identifying Collision Mitigation Braking System And Related Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

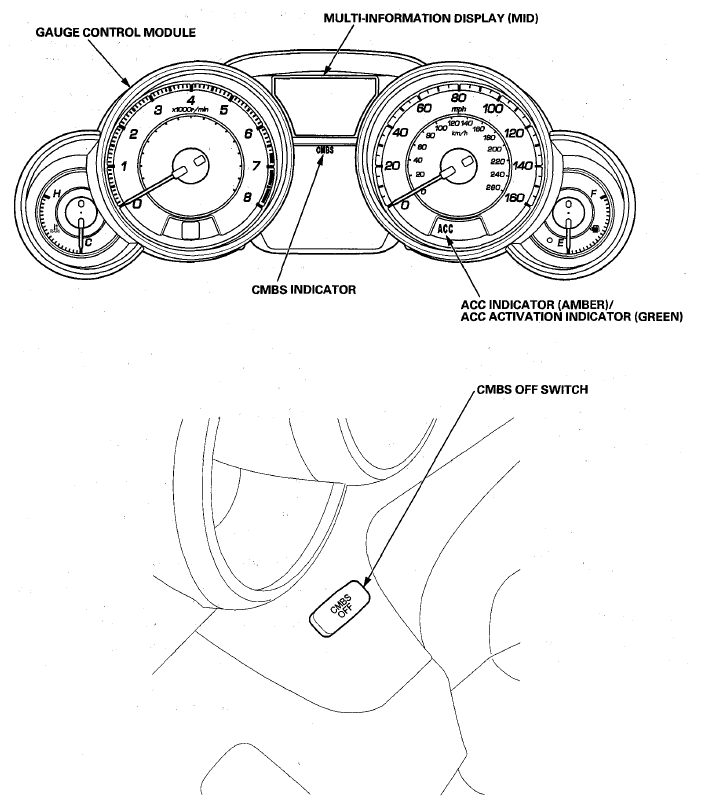

Fig 2: Identifying Collision Mitigation Braking System And Related Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
