LEMON Manuals: Even more car manuals for everyone
Home >> Acura >> 2012 >> MDX V6-3.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> PCM Inputs And Outputs At PCM Connector C (49P)

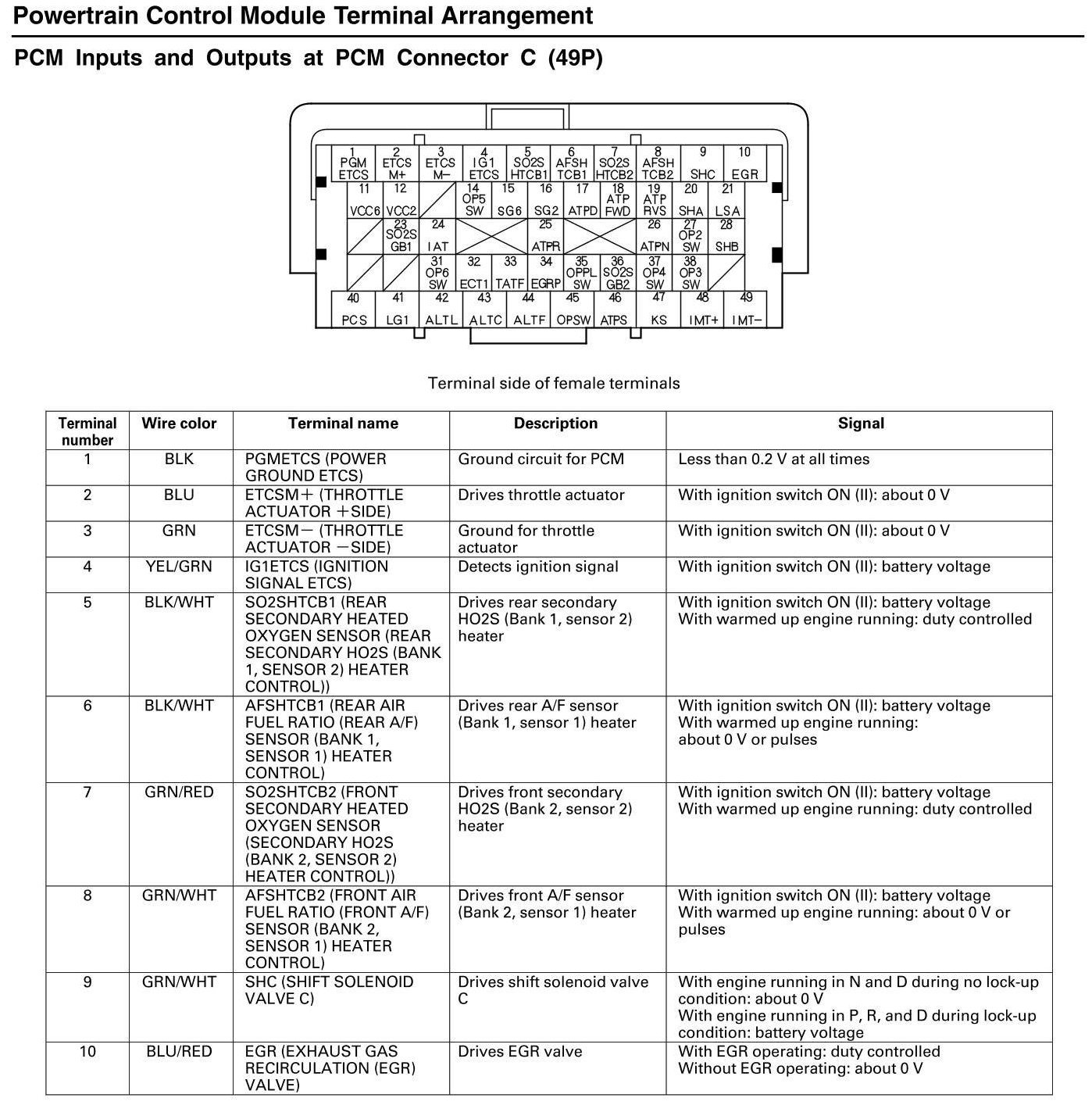

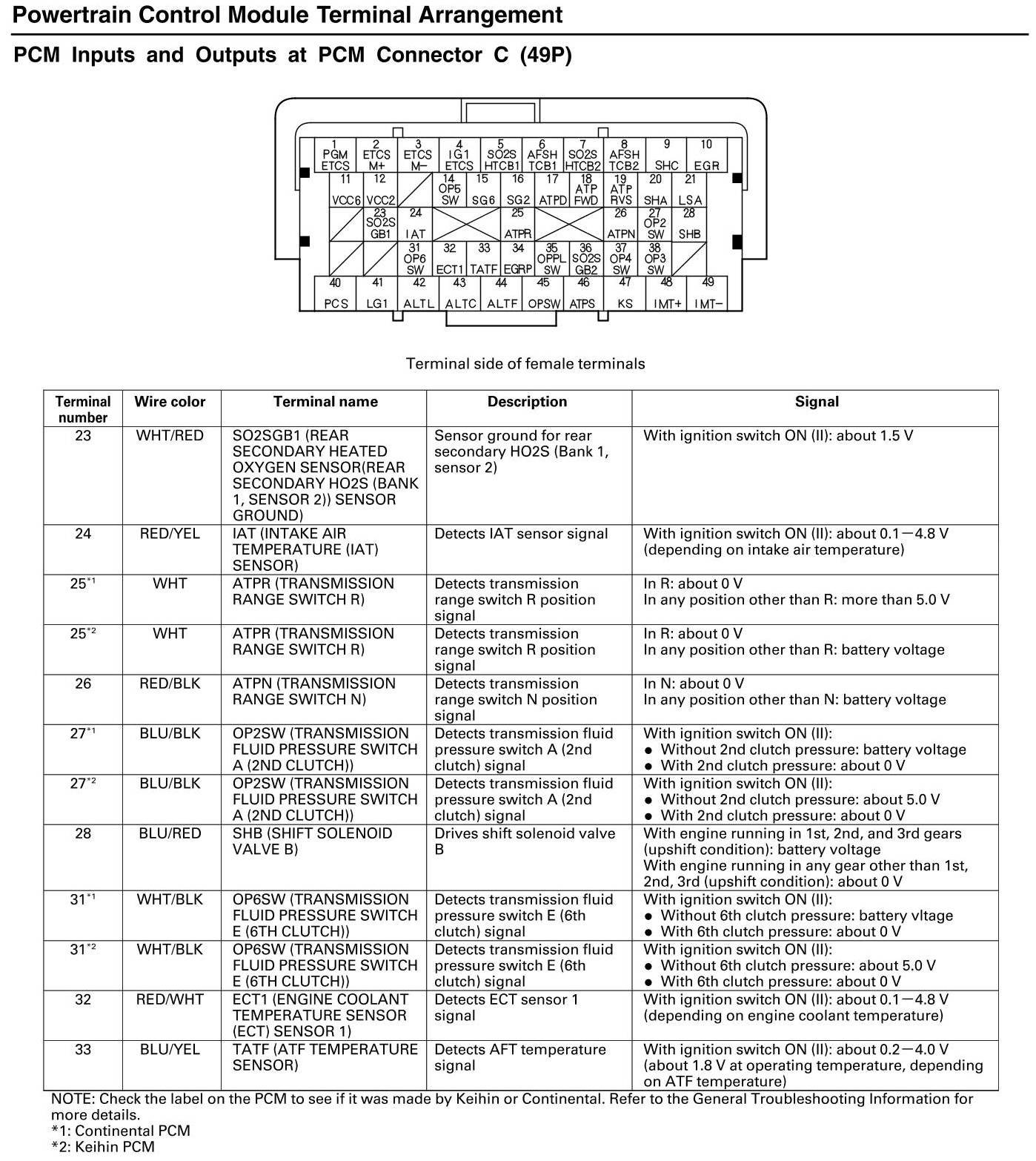

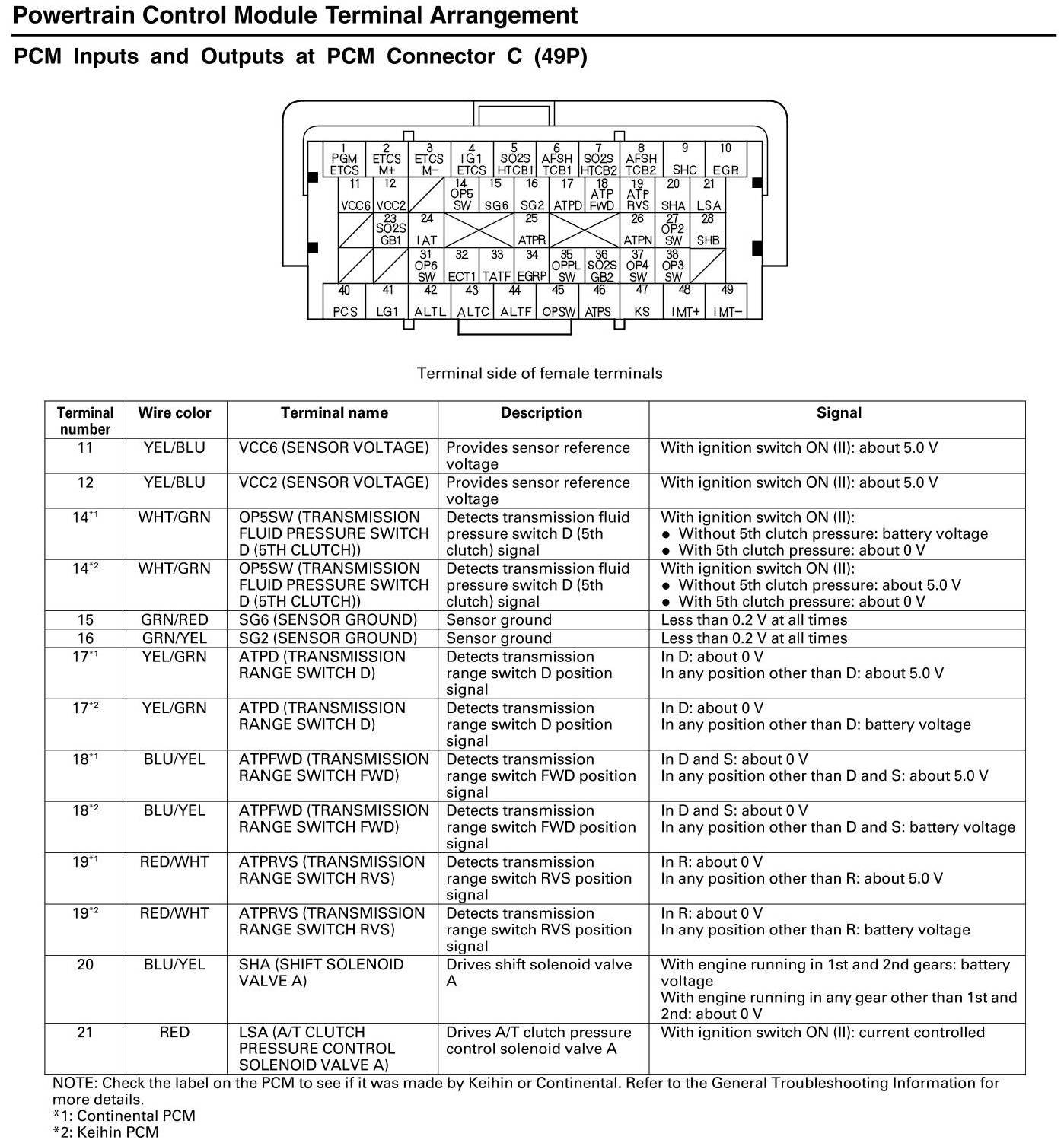

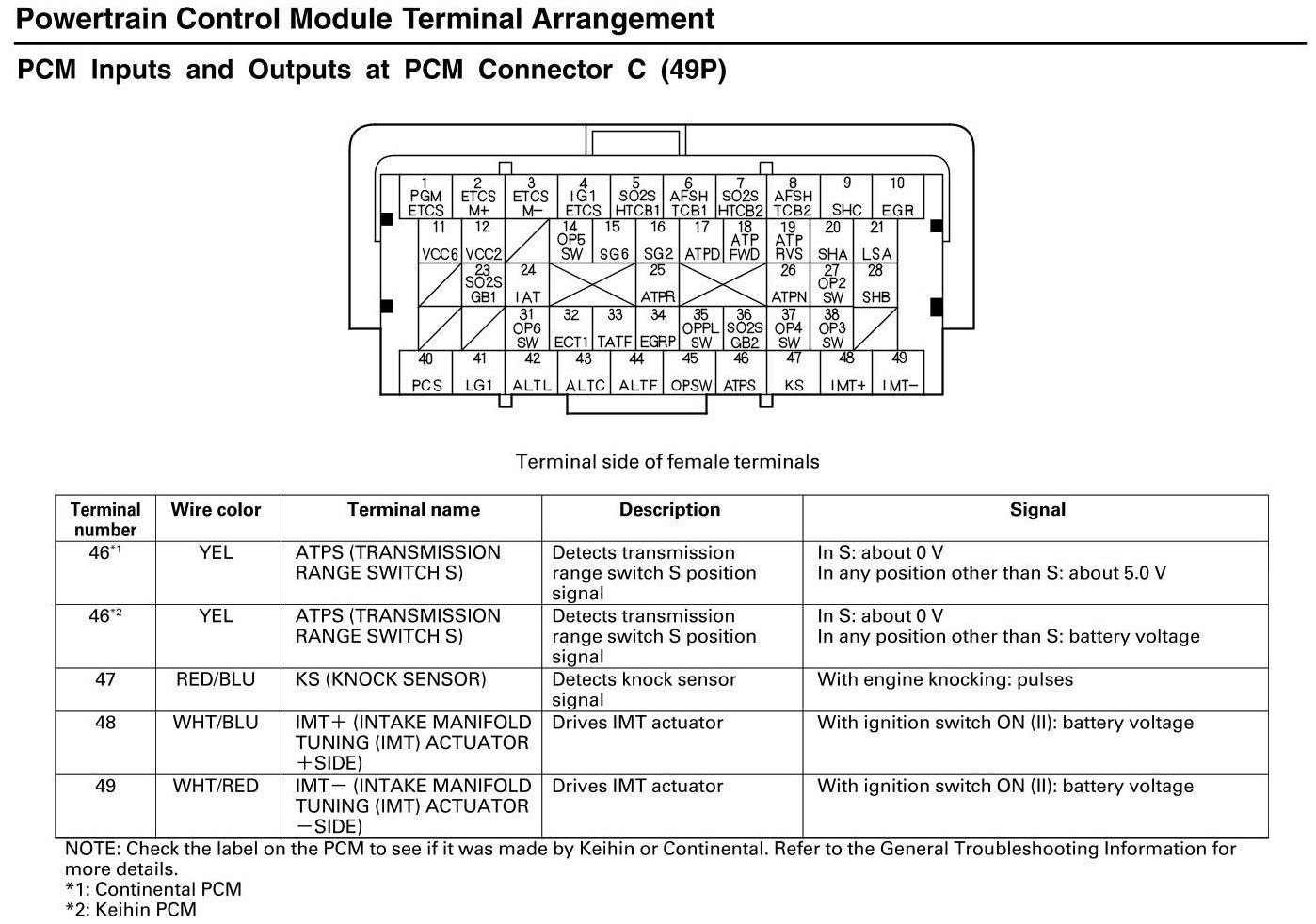

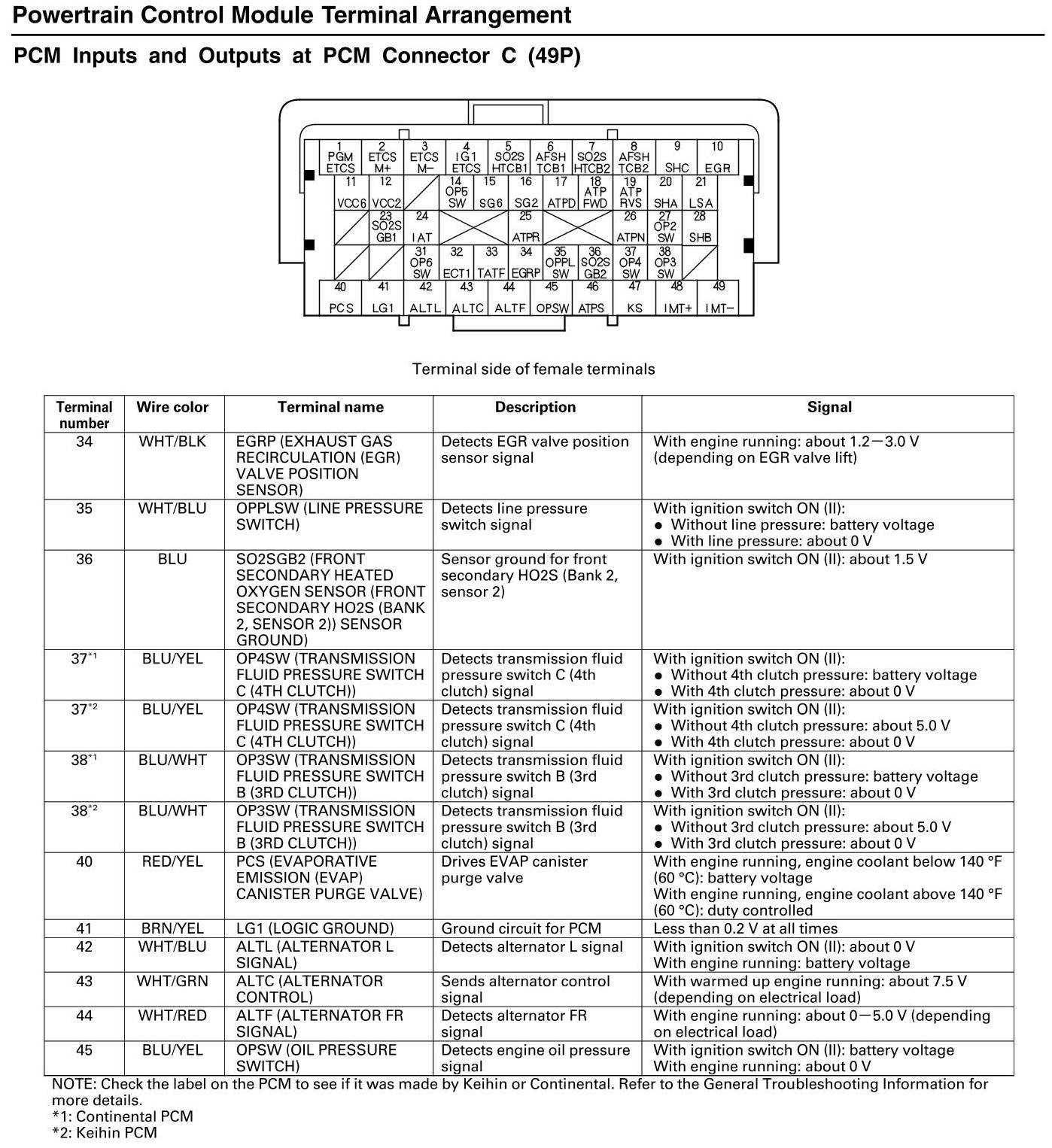

PCM Inputs And Outputs At PCM Connector C (49P)
