LEMON Manuals: Even more car manuals for everyone
Home >> Acura >> 2012 >> MDX V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Diagrams >> Rear Fuse/Relay Box Connector View

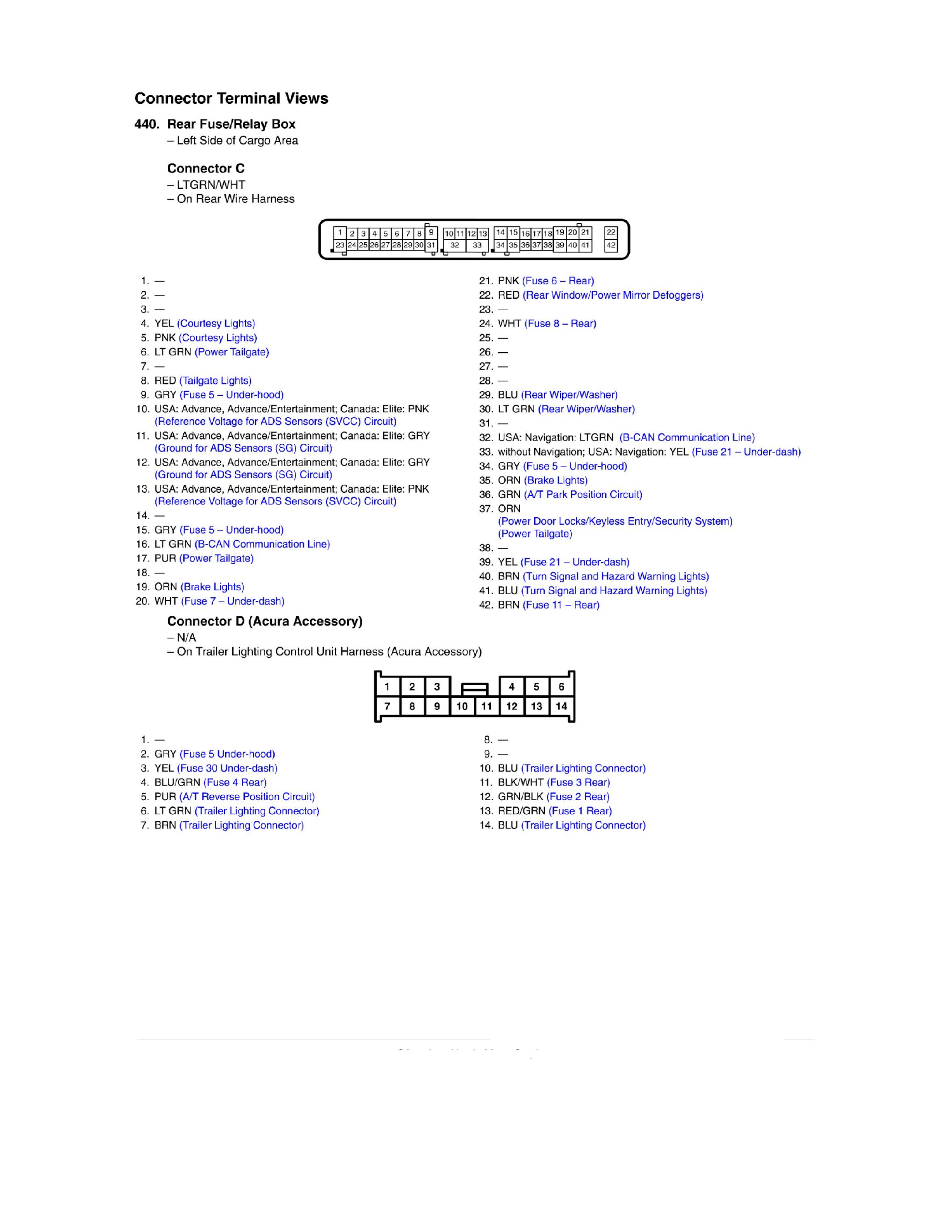

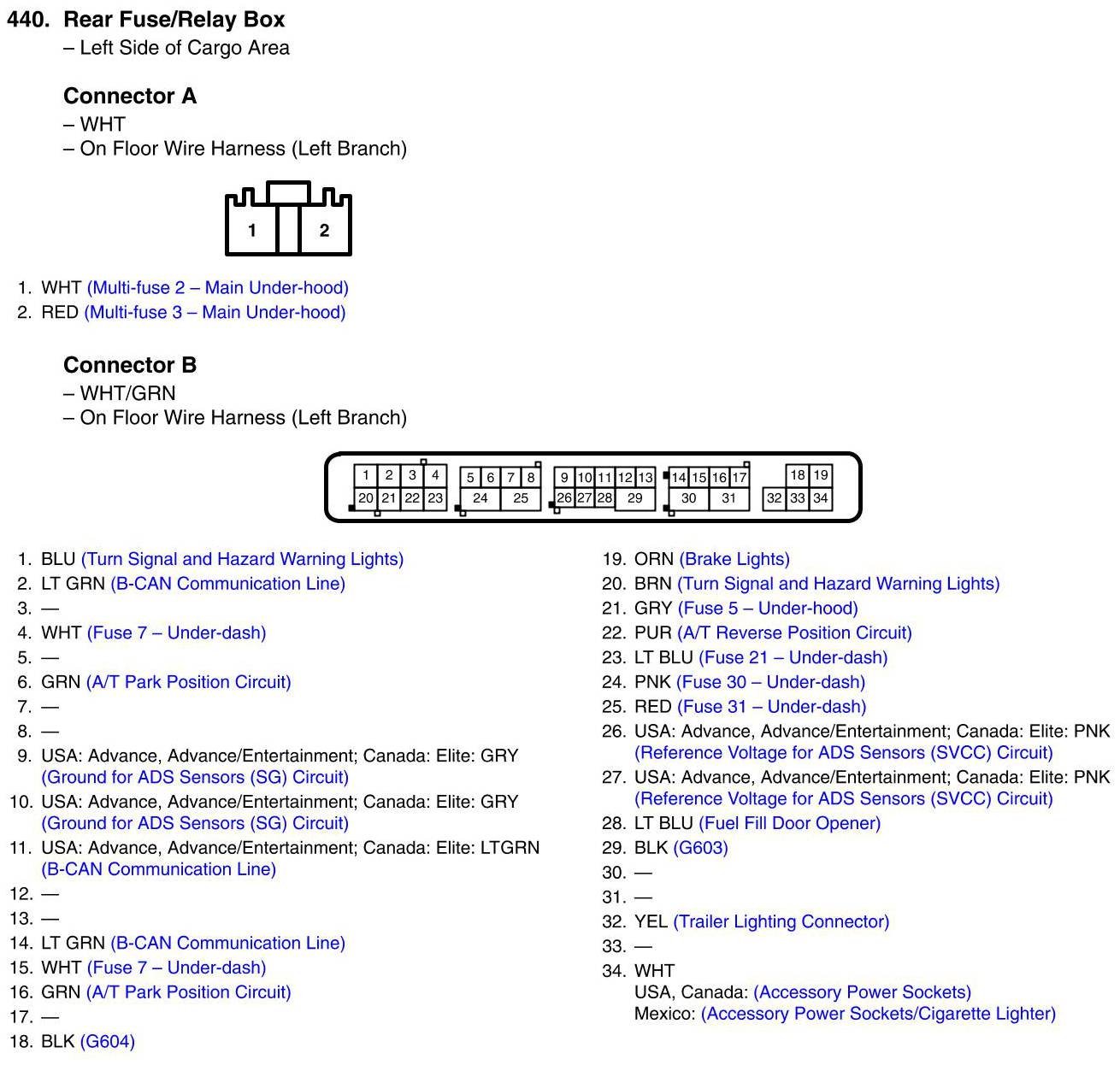

Rear Fuse/Relay Box Connector View
