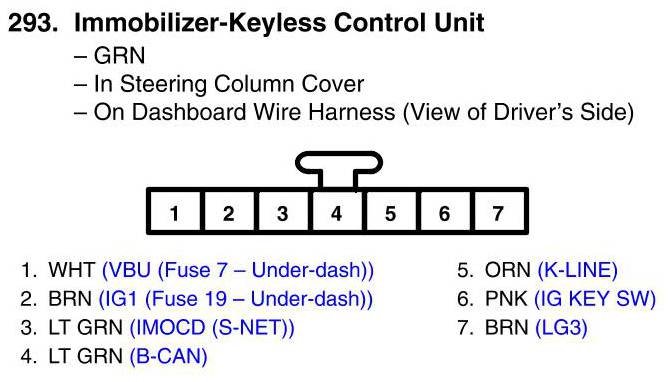

View 293 - Immobilizer-Keyless Control Unit Connector View
View 293 - Immobilizer-Keyless Control Unit Connector View
