Repair and Diagnosis
>>
Quick Lookups
>>
Electrical Component Locations
>>
Relays And Control Unit Locations
>>
Seat
>>
Driver's Seat
Driver's Seat

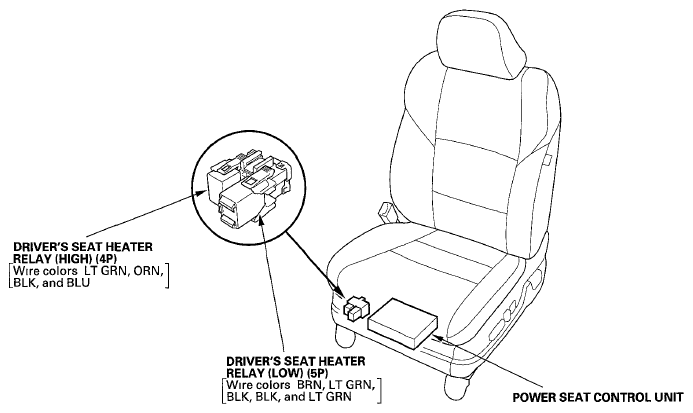

Fig 1: Identifying Relay And Control Unit Component Locations - Seat (Driver's Seat)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
