System Indicator: Notes

This system has four indicators:

• ABS indicator (A)
• Brake system indicator (B)
• VSA indicator (C)
• VSA activation indicator (D) ('09 model)
• VSA OFF indicator ('10-11 Model) (E)

  '09 model

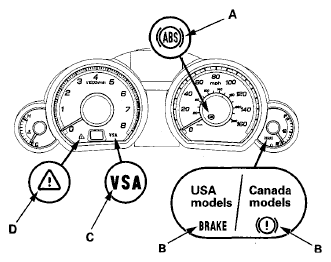

  Fig 1: Identifying ABS Indicator, Brake System Indicator, VSA Indicator, VSA Activation Indicator And VSA OFF Indicator - 09 Model

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  '10-11 model

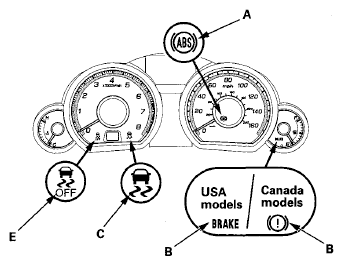

  Fig 2: Identifying ABS Indicator, Brake System Indicator, VSA Indicator, VSA Activation Indicator And VSA OFF Indicator - (10-11 Model)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  When the system detects a problem, it will turn the appropriate indicators on. Depending on the failure, the VSA modulator-control unit determines which indicators are turned on.

  When the system is OK, each indicator comes on for about 2 seconds after turning the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, then goes off.
