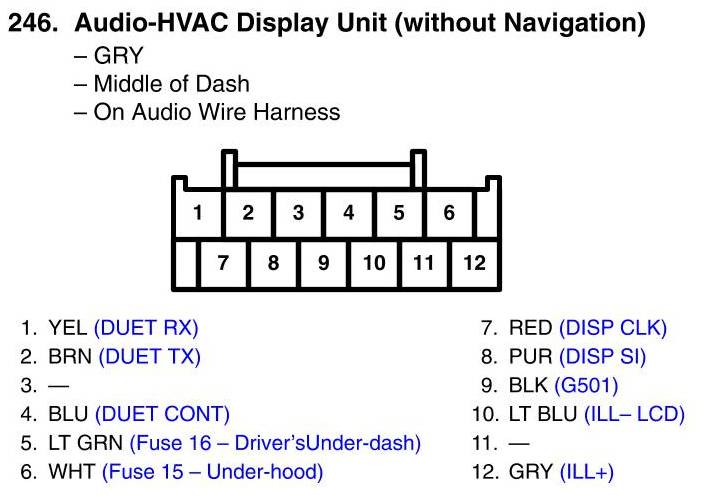

Audio-HVAC Display Unit Connector View (Without Navigation)
Audio-HVAC Display Unit Connector View (Without Navigation)
