Home >> Acura >> 2011 >> TL AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 137 - CMP Sensor Connector View

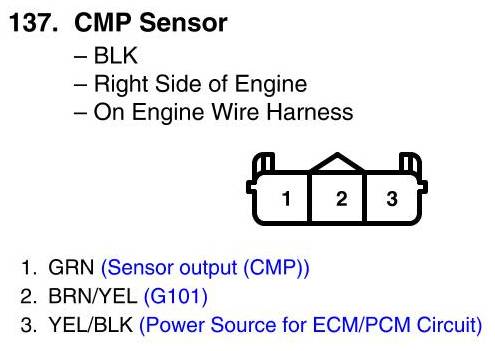

View 137 - CMP Sensor Connector View
