Power Distribution Relay
>>

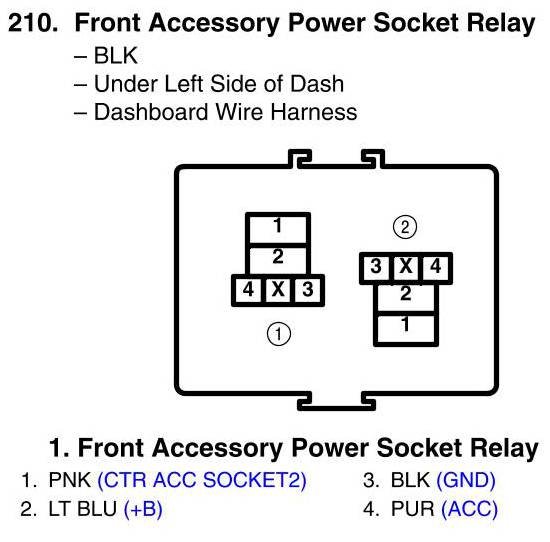

Front Accessory Power Socket Relay Connector View
Front Accessory Power Socket Relay Connector View
