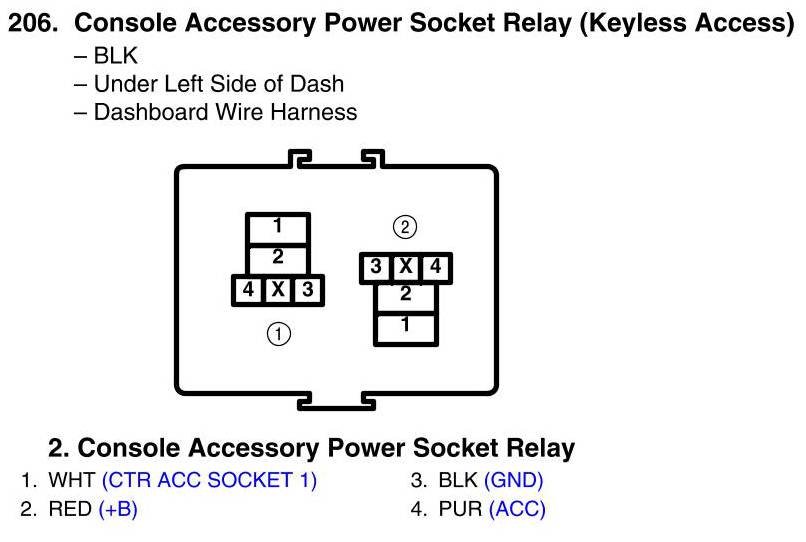

Console Accessory Power Socket Relay Connector View (Keyless Access)
Console Accessory Power Socket Relay Connector View (Keyless Access)
