Power Distribution Relay
>>

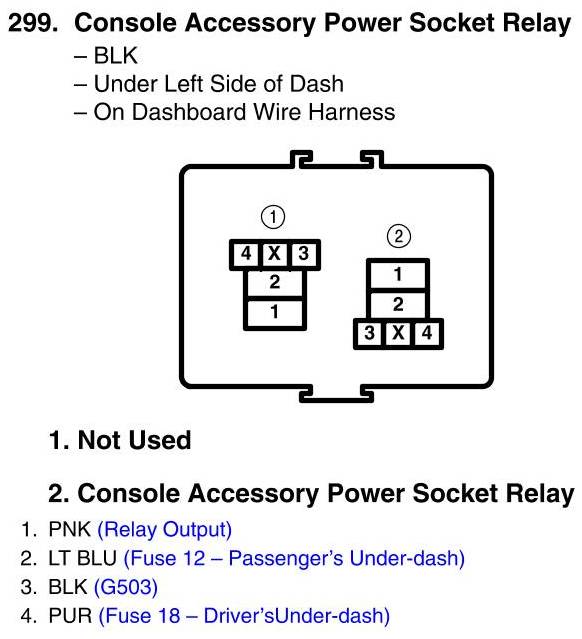

Console Accessory Power Socket Relay Connector View
Console Accessory Power Socket Relay Connector View
