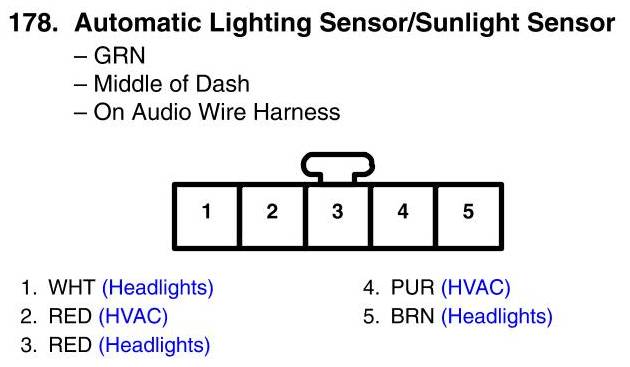

View 178 - Automatic Lighting Sensor/Sunlight Sensor Connector View
View 178 - Automatic Lighting Sensor/Sunlight Sensor Connector View
