Power Seat Control Unit (L4: DPMS) Connector End View

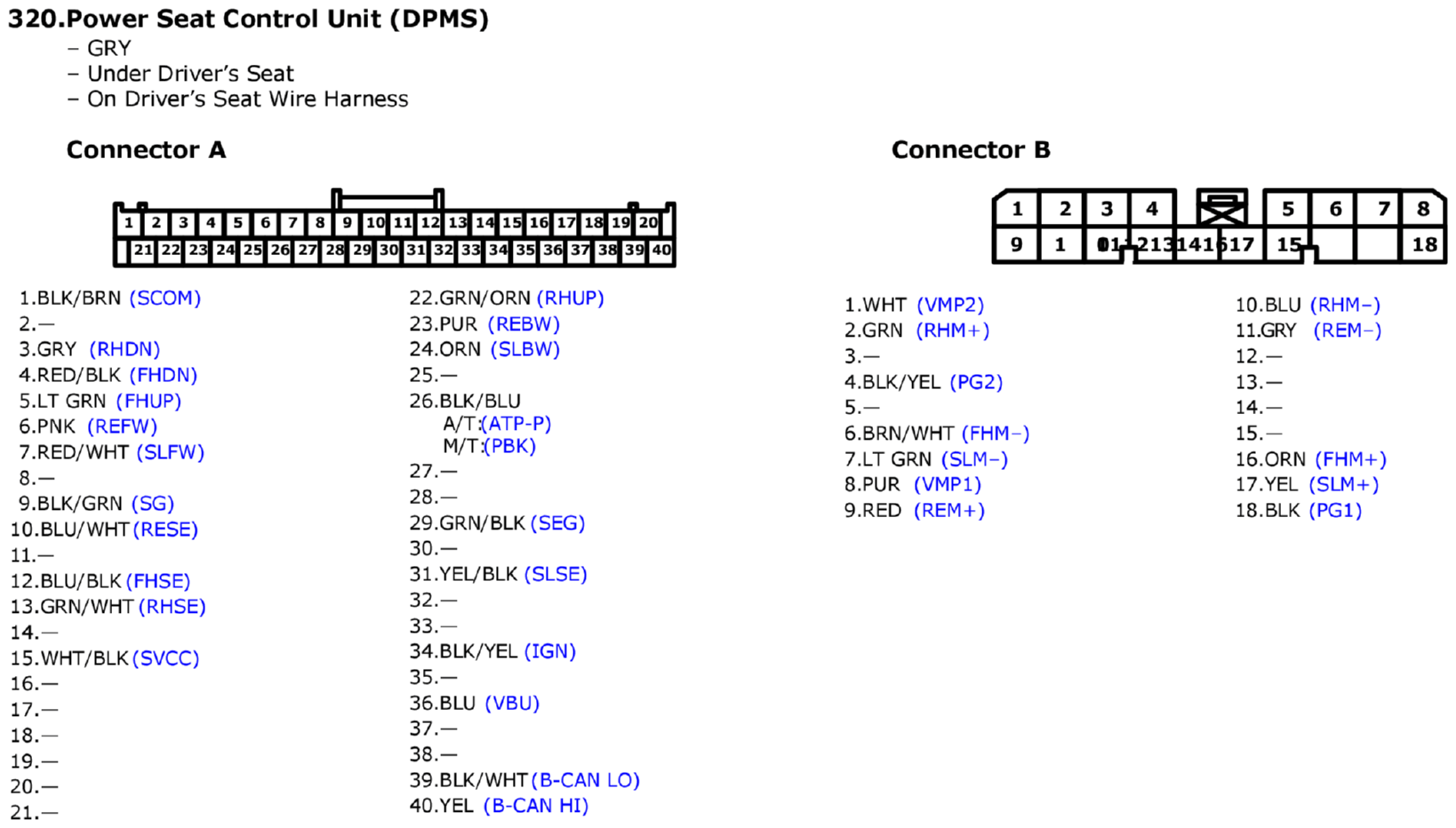

Fig 1: Power Seat Control Unit (L4: DPMS) Connector End View

GHHW12073

Courtesy of AMERICAN HONDA MOTOR CO., INC.
