Home >> Acura >> 2009 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 320 - Power Seat Control Unit Connector View (DPMS)

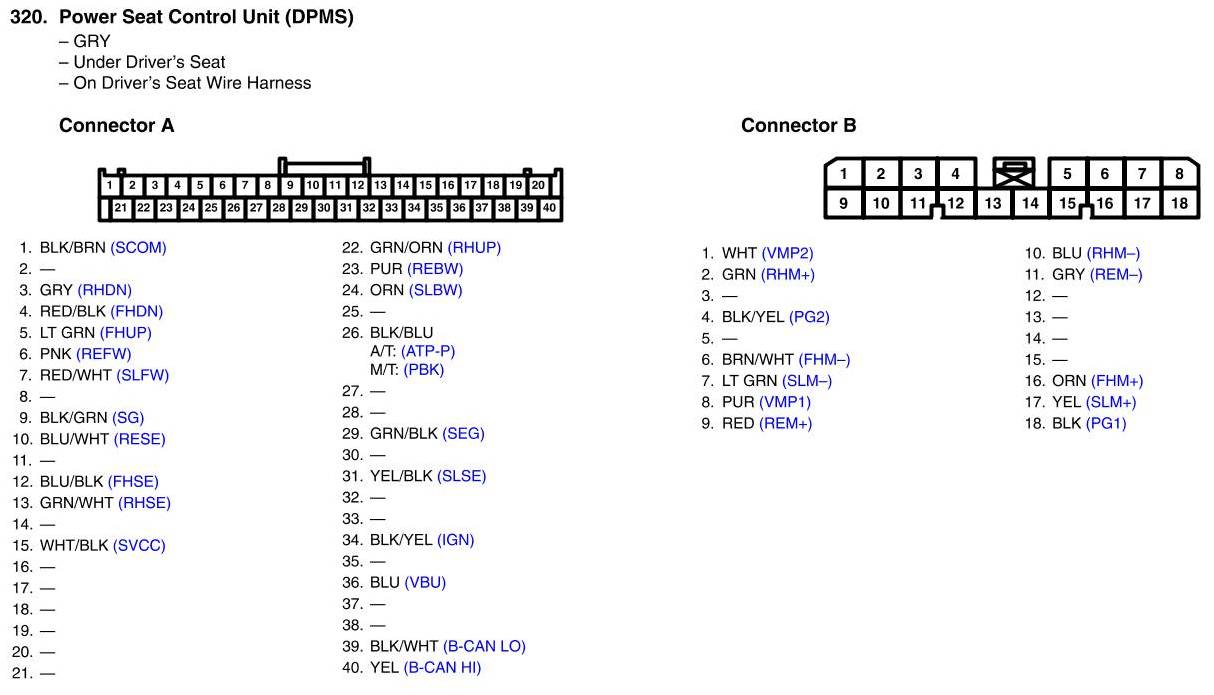

View 320 - Power Seat Control Unit Connector View (DPMS)
