Home >> Acura >> 2009 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 189 - AcuraLink Reprogramming Connector Connector View (AcuraLink)

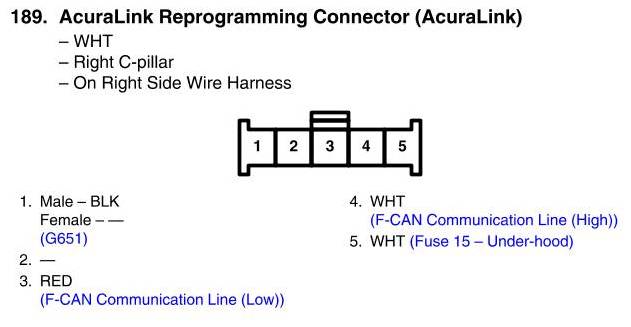

View 189 - AcuraLink Reprogramming Connector Connector View (AcuraLink)
