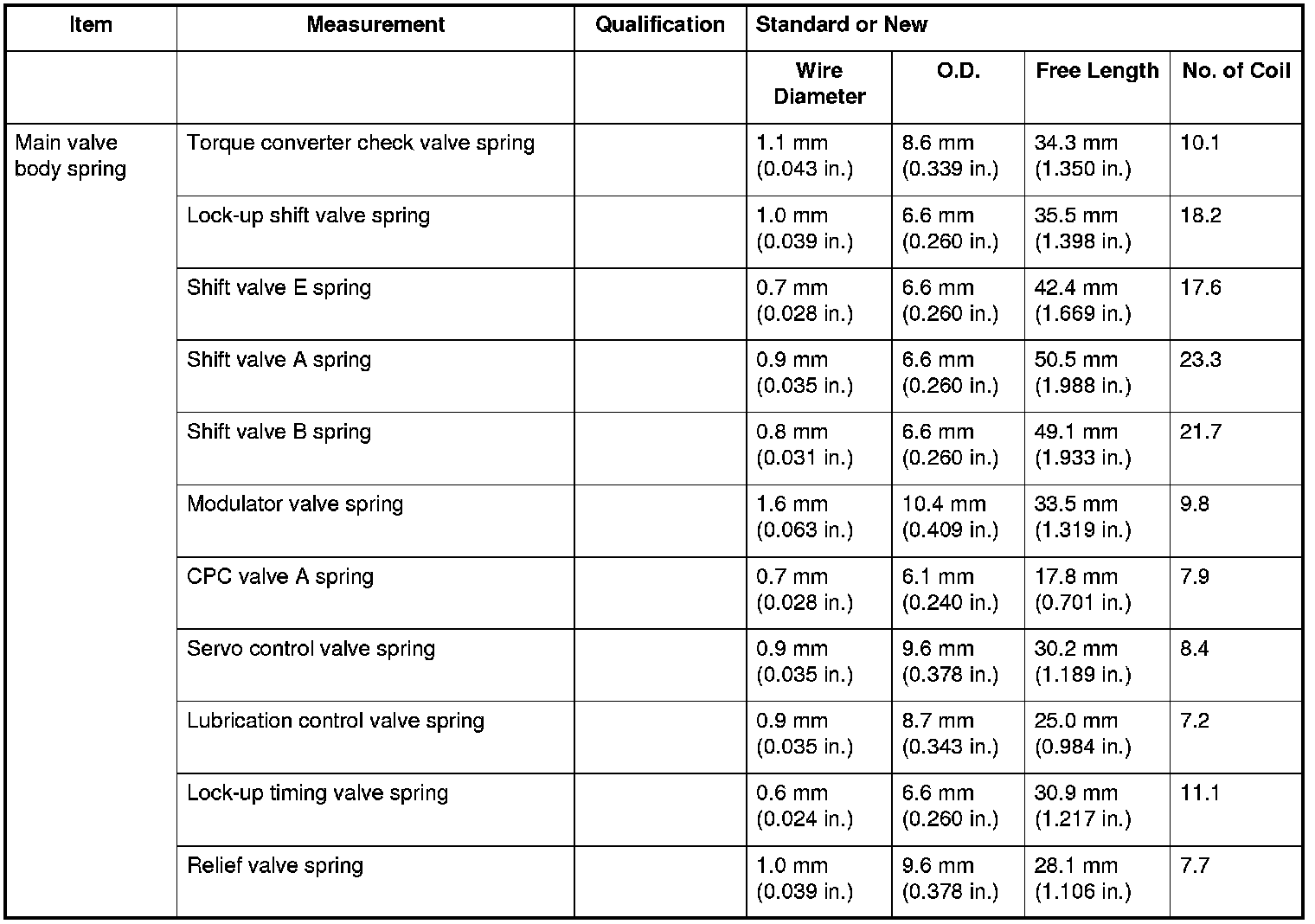

Main Valve Body Spring Specifications

Main valve body spring Specifications

Main valve body spring Main Valve Body Disassembly, Inspection, and Reassembly
