Home >> Acura >> 2009 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering >> Telescoping Wheel Position Sensor

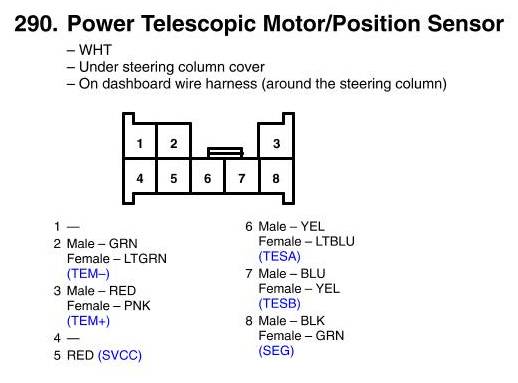

Telescoping Wheel Position Sensor
