Home >> Acura >> 2009 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> Back-up Sensor Control Unit Connector View (Acura Accessory)

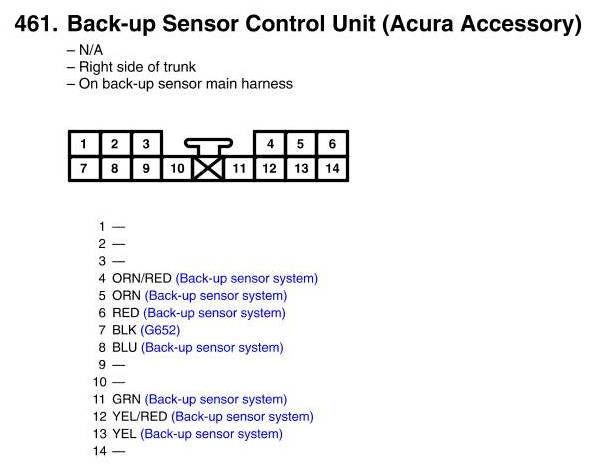

Back-up Sensor Control Unit Connector View (Acura Accessory)
