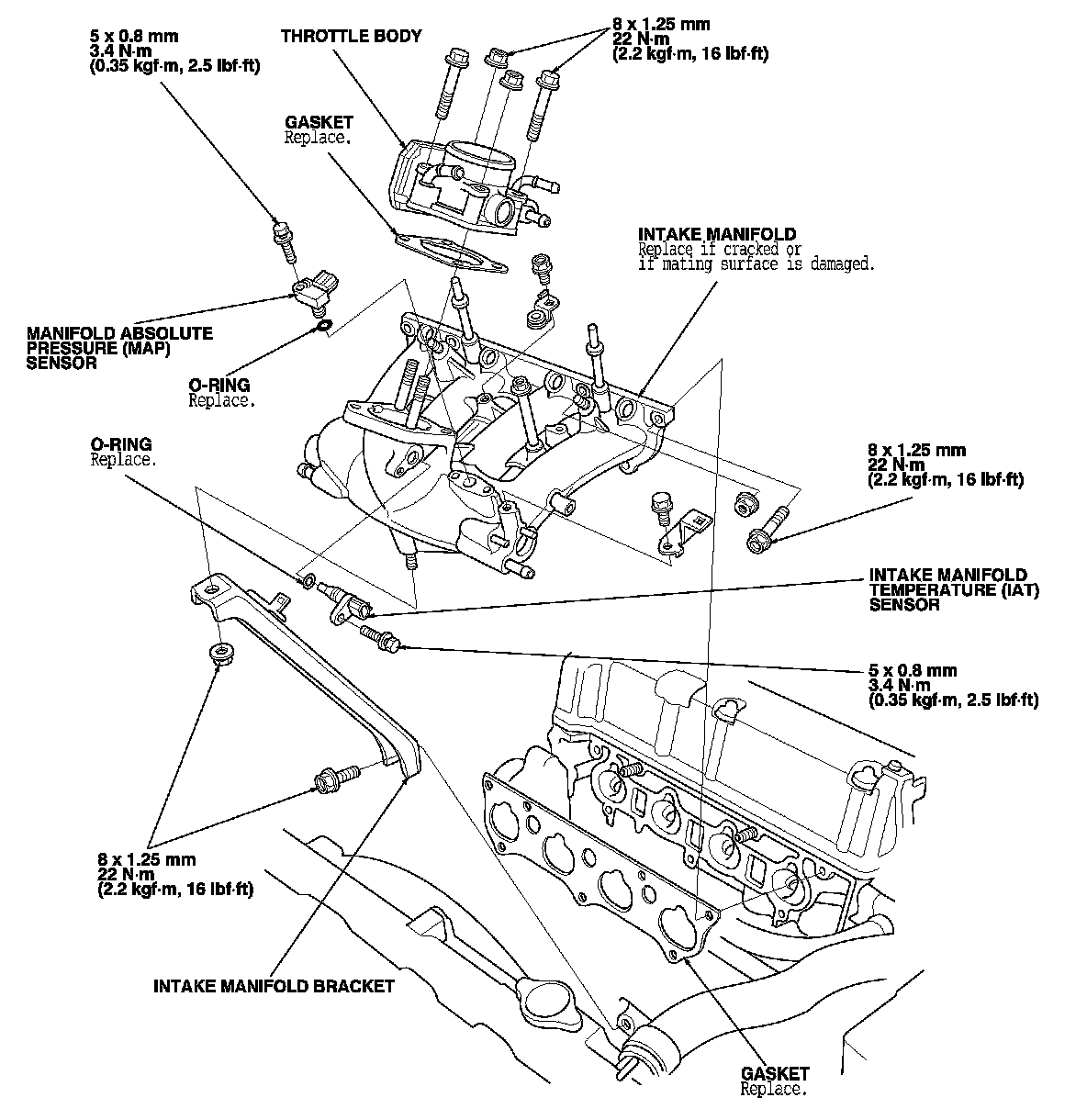

Intake Manifold






Intake manifold 22 Nm (2.2 kgf-m, 16 ft lb)

Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt
