IAT Sensor 2 Replacement

IAT Sensor 2 Replacement

1. Remove the charge air cooler cover. Service and Repair

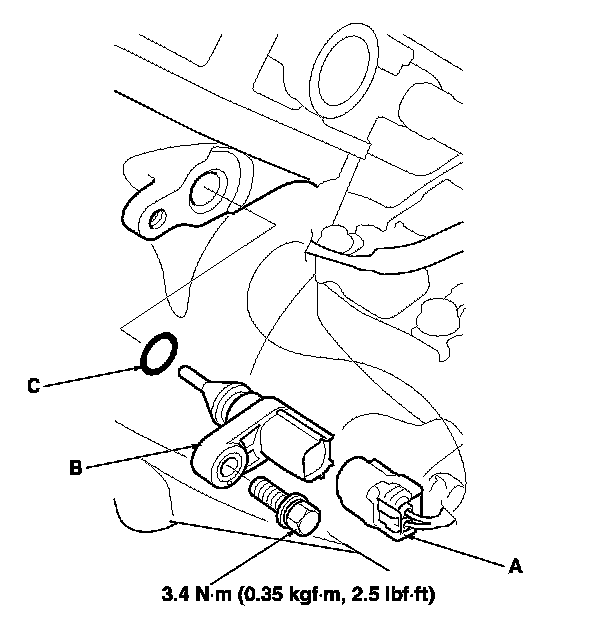

2. Disconnect the IAT sensor 2 connector (A).

3. Remove the IAT sensor 2 (B).

4. Install the parts in the reverse order of removal with a new O-ring (C).
