Cabin Temperature Sensor / Switch: Service and Repair

In-car Temperature Sensor Replacement

1. Remove the driver's dashboard undercover. Driver's Dashboard Undercover Removal/Installation

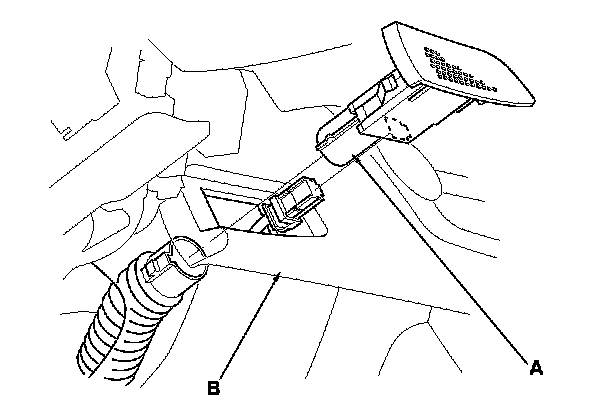

2. Remove the self-tapping screw and the in-car temperature sensor (A) from the instrument panel (B).

3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
