LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2009
>>
RDX L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

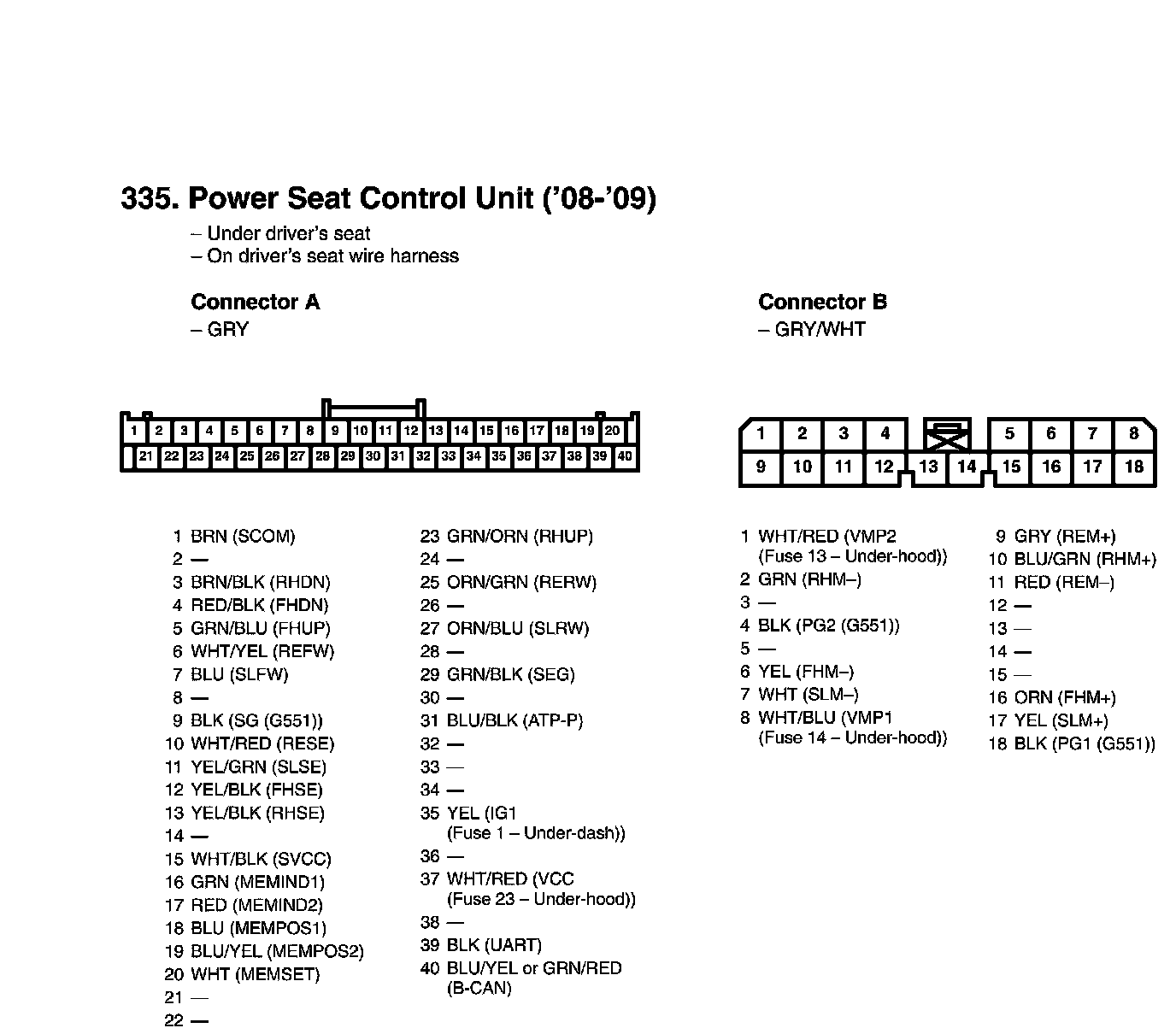

Power Seat Control Module
Power Seat Control Module
