Acura
>>
2009
>>
RDX L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Navigation Module
>>

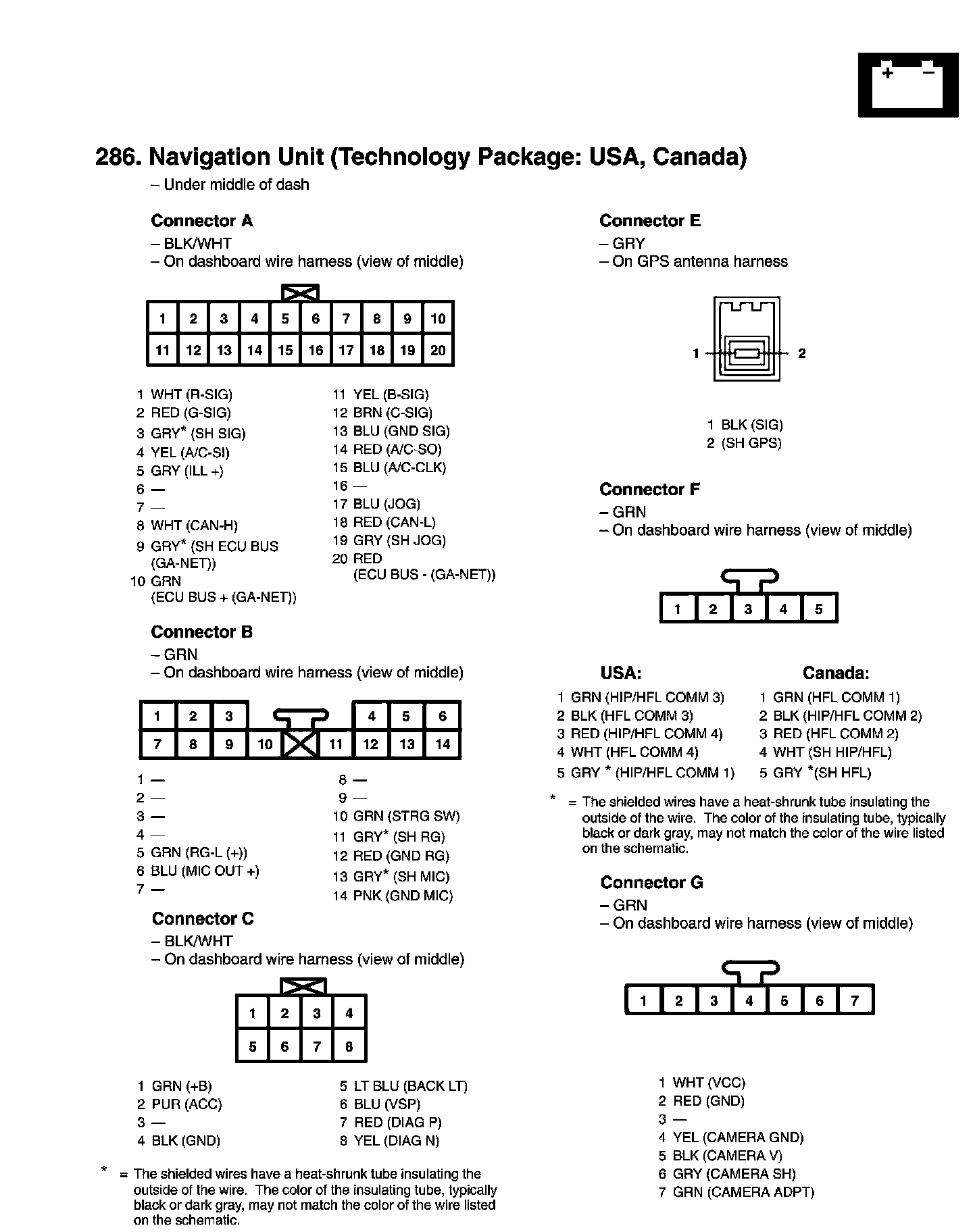

Navigation Unit Connector View
Navigation Unit Connector View
