Home >> Acura >> 2009 >> RDX L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Starting System >> IG1 Relay And Start Relay Connector View

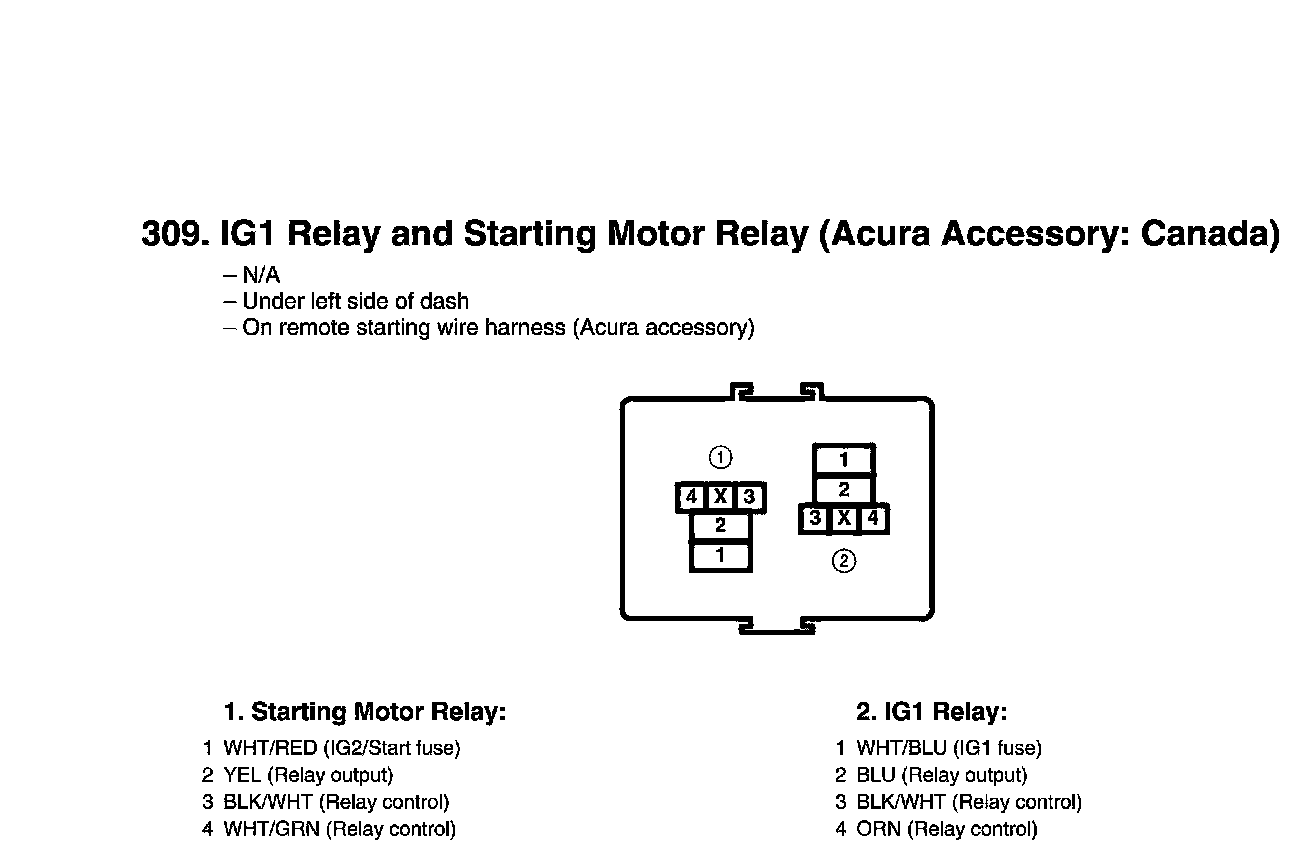

IG1 Relay And Start Relay Connector View
